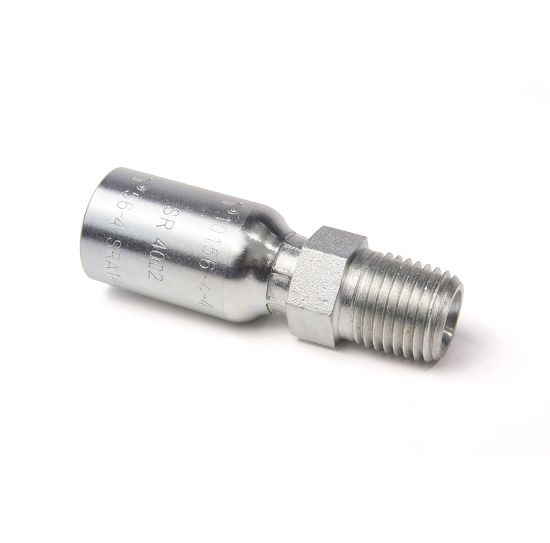

Global Fittings - 56 Series - Inch - 10156-4-6C

The Global 56 Series replaces the 55/58 Series. It is shorter, more compact, and is 20% lighter than comparable fittings.

Availability:	Backordered
Partner Available:	2 in stock

SKU: 10156-4-6C

$148.84

Products specifications

Attribute name	Attribute value
Brand	Parker	Shape	Straight
Division	Parflex Division	Body Material	Stainless Steel
Industry	Industrial Manufacturing Equipment	Technology	Fluid & Gas Handling
Connection 1 Type	Hose	Tube Outside Diameter	n/a
Configuration	Hose to Port	For Fluid Type	Hydraulic Fluids
Connection 1 Size	3/8 inch Hose I.D.	Connection 2 Size	1/4"-18 inch Thread
Connection 2 Type	Rigid	Hex Size 1	n/a
Division	Parflex Division	Hex Size	11/16 inch (see drawing legend H)
Hex Size 2	n/a	Application	Material Handling
Fitting Length	2.16 inch (see drawing legend A)	Connection Length	30 mm Cut-off allowance
Maximum Operating Pressure	5000 psi (Dependent on hose)	Shipping Weight	0.056 kg
Dimensional Weight	0.1177 lb
Materials of Construction	Stainless Steel	Product Style	Male NPTF Pipe - Rigid - Straight
Hose I.D. (inch)	0.375"	Connection 2 Size	1/4"-18
Length (inch)	2.16"
