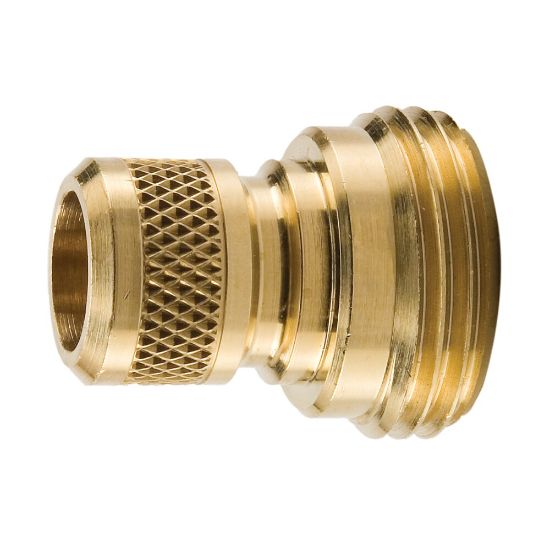

Garden Hose Quick Couplings - 1163 Series - 1163-61

Parker's high flow, brass garden hose quick couplers and nipples are ideal for applications where water hoses require fast and easy connection and disconnection.

Availability:	51 in stock
Partner Available:	369 in stock

SKU: 1163-61

$7.85

Products specifications

Attribute name	Attribute value
Body Material	BRASS	Minimum Operating Temperature	-40 °F
Seal Material	Nitrile	Division	Quick Coupling Division
Maximum Operating Temperature	250 °F	Product Type	Manual Connect
Valve Type	Unvalved	Application	Water Hose Connection
Maximum Operating Pressure	200 psi	Length	1.25 inch
Body Size	3/4 inch	Coupling Half	Nipple
Maximum Flow Rate	28 Gal/min
Coupling Half	Male Nipple	Thread Style	Male
Connection Type	NH	Connection Thread Size (inch)	3/4 - 11 1/2

Product resources

Literature and Reference Materials

Compliance, Certifications & Safety

Safety Guide: Quick Couplings and Related Accessories
