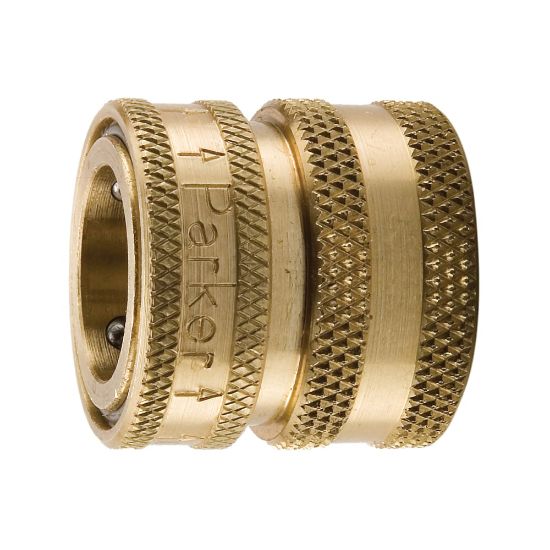

Garden Hose Quick Couplings - 1163 Series - 1163-60

Parker's high flow, brass garden hose quick couplers and nipples are ideal for applications where water hoses require fast and easy connection and disconnection.

Availability:	43 in stock
Partner Available:	765 in stock

SKU: 1163-60

$17.38

Products specifications

Attribute name	Attribute value
Body Material	BRASS	Minimum Operating Temperature	-40 °F
Seal Material	Nitrile	Division	Quick Coupling Division
Coupling Half	Coupler	Maximum Operating Temperature	250 °F
Product Type	Manual Connect	Valve Type	Unvalved
Application	Water Hose Connection	Maximum Operating Pressure	200 psi
Length	1.16 inch	Body Size	3/4 inch
Maximum Flow Rate	28 Gal/min
Coupling Half	Female Coupler	Thread Style	Female
Connection Type	NH	Connection Thread Size (inch)	3/4 - 11 1/2

Product resources

Literature and Reference Materials

Compliance, Certifications & Safety

Safety Guide: Quick Couplings and Related Accessories
