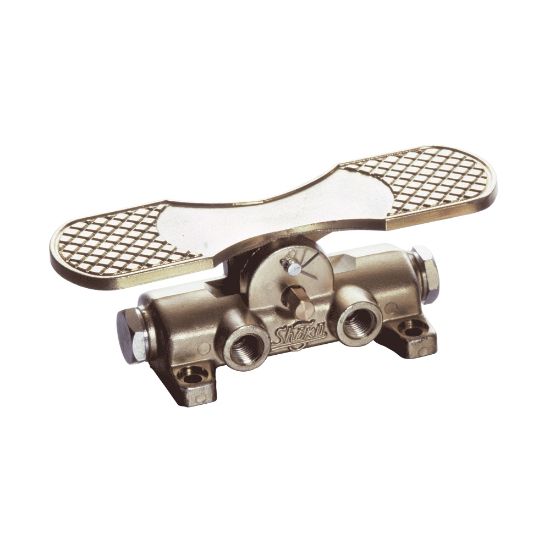

Foot Valve Model:4FN - H3FG00008589

Name: Foot Valve Model:4FN - H3FG00008589
SKU: H3FG00008589
Availability: OutOfStock

4-port switching valve 4FN series for foot operation that is extremely durable with a robust structure. A wide variety of connection port sizes are available, from Rc1/4 to Rc3/4. (BSPT)

Availability:

Backordered

SKU: H3FG00008589

Qty:

Products specifications

Attribute name	Attribute value
Weight	5.0 kg	Operating Temperature	-10 to 50 °C (No freezing)(Ambient/Fluid temperature)
Pressure Rating	0 to 1 MPa	Installation	Free
Lubricant	Unnecessary (but possible)	For Fluid Type	Air
Proof Pressure	1.5 MPa	Division	TAIYO Division
Orifice Size	58mm²	Outlet Port Size	Rc3/4
Spool Position	3-position closed center(Detent)	Spool Type	4-port 3-position
Valve Type	Foot operation

Product resources

Literature and Reference Materials

Foot valve 4F 4FN 4PN catalog
