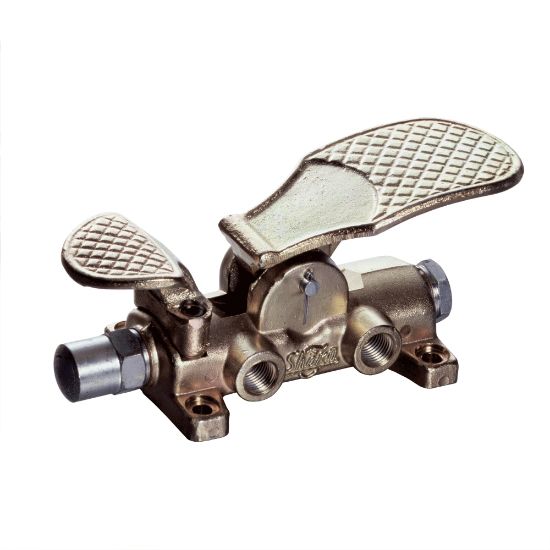

Foot Valve Model:4F - H3FG00008584

Name: Foot Valve Model:4F - H3FG00008584
SKU: H3FG00008584
Availability: OutOfStock

4-port switching valve 4F series for foot operation that is extremely durable with a robust structure. A wide variety of connection port sizes are available, from Rc1/4 to Rc3/4.

Availability:

Backordered

SKU: H3FG00008584

Qty:

Products specifications

Attribute name	Attribute value
Division	TAIYO Division	Operating Temperature	-10 to 50 °C (No freezing)(Ambient/Fluid temperature)
Pressure Rating	0 to 1 MPa	For Fluid Type	Air
Installation	Free	Lubricant	Unnecessary (but possible)
Weight	2.6 kg	Proof Pressure	1.5 MPa
Valve Type	Foot operation	Spool Position	Two-position spring return
Spool Type	4-port 2-position	Orifice Size	31mm²
Outlet Port Size	Rc1/2

Product resources

Literature and Reference Materials

Foot valve 4F 4FN 4PN catalog
