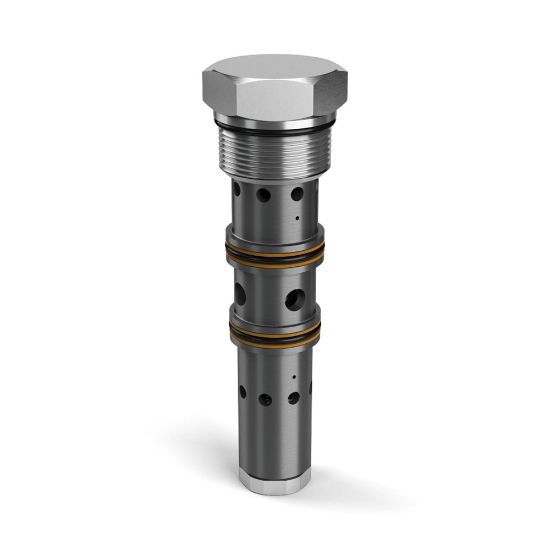

Flow Divider/Combiner Valves - L1A3001505050V

Name: Flow Divider/Combiner Valves - L1A3001505050V
SKU: L1A3001505050V
Availability: OutOfStock

Parker offers four different flow divider/combiner valves to cover a wide range of flows up to 320 lpm (85 gpm) and pressures as high as 420 bar (6,000 psi). Standard and custom ratios are available, along with optimized flow range options.

Availability:

Backordered

SKU: L1A3001505050V

Qty:

Products specifications

Attribute name	Attribute value
Maximum Operating Pressure	350 bar	Standard Flow Rate Setting	15.9-39.7 Gal/min
Cavity Size	91-1	Maximum Flow Rate	320 L/min
Configuration	n/a	Connection Type	n/a
Connection Size	n/a	Flow Rate	85 Gal/min
Maximum Operating Temperature	+400 °F	Filter Efficiency Rating	ISO 4406 18/16/13, SAE Class 4
Seal Material	Fluorocarbon	Actuation Type	Interlocking Spools
Maximum Kinematic Viscosity	45-2000 SSU (6 to 420 cSt)	Function	Flow Divider/Combiner
Ratio	50/50	Minimum Operating Temperature	-26 °C
Body Material	n/a	Operating Temperature	-15 to +400 °F
Operation Type	Automatic	Maximum Inlet Pressure Rating	5000 psi
Division	Hydraulic Cartridge Systems Division	Flow Rate Accuracy	10%
Weight	2.2 lb	Valve Material	All parts steel. All operating parts hardened steel
Division	Mobile Hydraulic Systems Division Europe	Installation Torque	150 Nm
For Fluid Type	Mineral-based or synthetic hydraulic fluids
Ratio	50/50	Flow Rate	85 GAL/MIN, 320 L/MIN
Standard Flow Rate Setting	15.9-39.7 GAL/MIN, 60-150 L/MIN	Seal Material	Fluorocarbon
