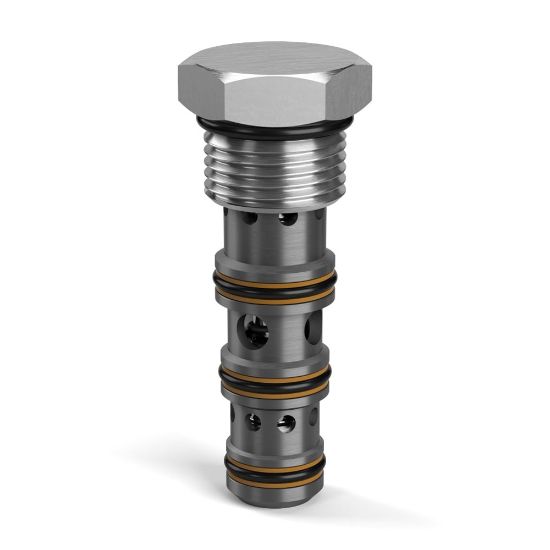

*PRODUCT IMAGE IS REPRESENTATIVE PROVIDED BY THE MANUFACTURER. DO NOT MAKE BUYING DECISIONS SOLEY BASED ON THE IMAGE. PLEASE VERIFY SPECIFICATIONS MEET YOUR REQUIREMENTS.

Flow Divider/Combiner Valves - L04A3-20-20N

Name: Flow Divider/Combiner Valves - L04A3-20-20N
SKU: L04A3-20-20N
Availability: OutOfStock

Parker offers four different flow divider/combiner valves to cover a wide range of flows up to 320 lpm (85 gpm) and pressures as high as 420 bar (6,000 psi). Standard and custom ratios are available, along with optimized flow range options.

Availability:

Backordered

SKU: L04A3-20-20N

Qty:

Products specifications

Attribute name	Attribute value
Minimum Operating Temperature	-34 °C	Division	Hydraulic Cartridge Systems Division
Flow Rate Accuracy	10%	Filter Efficiency Rating	ISO 4406 18/16/13, SAE Class 4
Maximum Flow Rate	60 L/min	For Fluid Type	Mineral-based or synthetic hydraulic fluids
Installation Torque	50 Nm	Ratio	50/50
Body Material	n/a	Operation Type	Automatic
Connection Type	n/a	Connection Size	n/a
Cavity Size	C10-4	Configuration	n/a
Valve Material	All parts steel. All operating parts hardened steel	Division	Mobile Hydraulic Systems Division Europe
Flow Rate	60 L/min	Actuation Type	Interlocking Spools
Maximum Kinematic Viscosity	45-2000 SSU (6 to 420 cSt)	Function	Flow Divider/Combiner
Standard Flow Rate Setting	3.2-10.6 Gal/min	Seal Material	Nitrile
Operating Temperature	-34 to +121 °C	Weight	0.12 kg
Maximum Operating Pressure	6000 psi	Maximum Operating Temperature	+121 °C
Maximum Inlet Pressure Rating	6000 psi
Standard Flow Rate Setting	3.2-10.6 GAL/MIN, 12-40 L/MIN	Ratio	50/50
Seal Material	Nitrile	Flow Rate	16 GAL/MIN, 60 L/MIN
