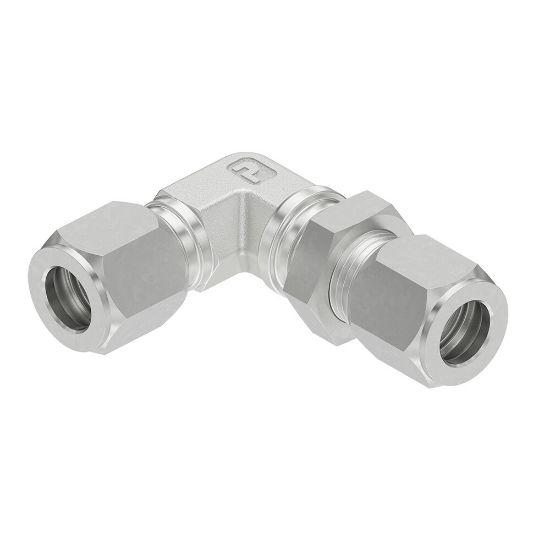

Ferulok 24° Flareless Fittings - 8 WEBU-S

Parker's Ferulok 24° Flareless fittings create a visible heavy bite allowing easy inspection and a rear compression grip which firmly holds the nut and tubing, dampening the effects of vibration.

Availability:	Backordered
Partner Available:	3 in stock

SKU: 8 WEBU-S

$50.06

Products specifications

Attribute name	Attribute value
Connection Type	Flareless Bite Type	Maximum Dynamic Pressure	5000 psi
Division	Tube Fittings Division	Connection 4 Size	na
Connection 4 Tube Outside Diameter	na	Specifications Met	SAE J514
Dimensional Weight	0.12464028776978417 lb
Connection 3 Style	na	Connection 3 Thread Size (inch)	na
Connection 3 Tube O.D. (inch)	na	Connection 2 Style	Male Flareless Bite Type Bulkhead
Connection 2 Tube O.D. (inch)	1/2	O-ring	na
Body Material	Steel	Connection 1 Style	Male Flareless Bite Type
Connection Style	Bulkhead Union Elbow	Connection 1 Tube O.D. (inch)	1/2
Shape	90° Elbow	Connection 2 Thread Size (inch)	na
