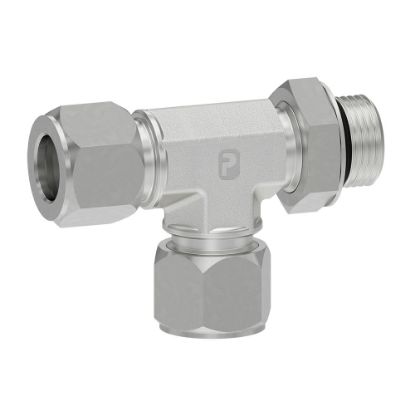

Ferulok 24° Flareless Fittings - 16 S5BU-S

Parker's Ferulok 24° Flareless fittings create a visible heavy bite allowing easy inspection and a rear compression grip which firmly holds the nut and tubing, dampening the effects of vibration.

Availability:	Backordered
Partner Available:	Backordered

SKU: 16 S5BU-S

$57.15

Products specifications

Attribute name	Attribute value
Division	Tube Fittings Division	Connection 4 Size	na
Maximum Dynamic Pressure	3000 psi	Specifications Met	SAE J514
Connection Type	Flareless Bite Type	Connection 4 Tube Outside Diameter	na
Body Material	Steel	Shape	Tee
Connection 2 Thread Size (inch)	na	Connection 1 Style	Male Flareless Bite Type
Connection 2 Style	Male Flareless Bite Type	O-ring	90 Durometer Nitrile
Connection 3 Tube O.D. (inch)	na	Connection Style	Straight Thread Branch Tee
Connection 3 Style	Male SAE-ORB	Connection 3 Thread Size (inch)	1 5/16-12
Connection 1 Tube O.D. (inch)	1	Connection 2 Tube O.D. (inch)	1
