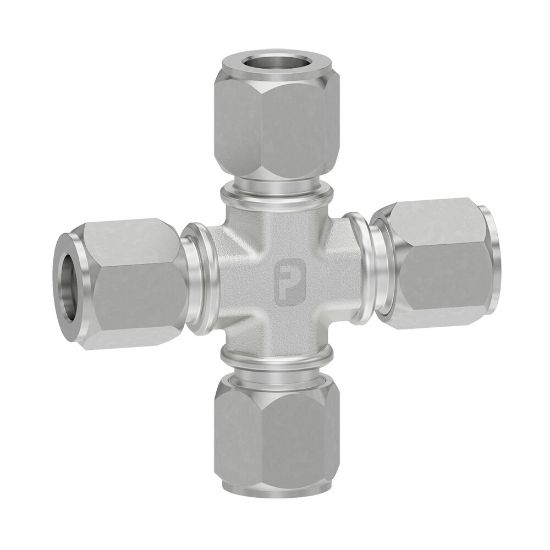

Ferulok 24° Flareless Fittings - 12 KBU-S

Parker's Ferulok 24° Flareless fittings create a visible heavy bite allowing easy inspection and a rear compression grip which firmly holds the nut and tubing, dampening the effects of vibration.

Availability:	Backordered
Partner Available:	1 in stock

SKU: 12 KBU-S

$206.58

Products specifications

Attribute name	Attribute value
Division	Tube Fittings Division	Maximum Dynamic Pressure	4000 psi
Specifications Met	SAE J514	Connection Type	Flareless Bite Type
Connection 4 Size	Male Flareless Bite Type	Connection 4 Tube Outside Diameter	3/4 inch
Body Material	Steel	Connection 3 Thread Size (inch)	na
Shape	Cross	Connection 2 Thread Size (inch)	na
Connection 1 Style	Male Flareless Bite Type	Connection 2 Style	Male Flareless Bite Type
O-ring	na	Connection 3 Style	Male Flareless Bite Type
Connection 1 Tube O.D. (inch)	3/4	Connection 2 Tube O.D. (inch)	3/4
Connection Style	Union Cross	Connection 3 Tube O.D. (inch)	3/4
