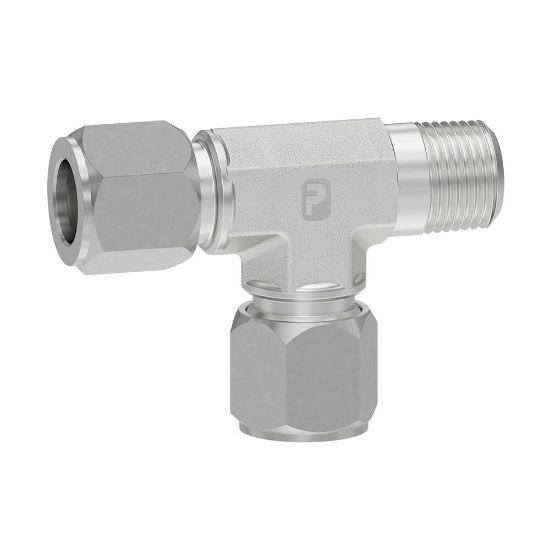

Ferulok 24° Flareless Fittings - 10 RBU-S

Parker's Ferulok 24° Flareless fittings create a visible heavy bite allowing easy inspection and a rear compression grip which firmly holds the nut and tubing, dampening the effects of vibration.

Availability:	Backordered
Partner Available:	44 in stock

SKU: 10 RBU-S

$52.28

Products specifications

Attribute name	Attribute value
Division	Tube Fittings Division	Connection 4 Size	na
Dimensional Weight	0.12464028776978417 lb	Maximum Dynamic Pressure	4500 psi
Specifications Met	SAE J514	Connection Type	Flareless Bite Type
Connection 4 Tube Outside Diameter	na
Body Material	Steel	Connection 2 Thread Size (inch)	1/2-14
Connection 3 Thread Size (inch)	na	Shape	Tee
Connection 1 Style	Male Flareless Bite Type	Connection 2 Style	Male NPTF
Connection 1 Tube O.D. (inch)	5/8	O-ring	na
Connection 2 Tube O.D. (inch)	na	Connection Style	Run Tee
Connection 3 Style	Male Flareless Bite Type	Connection 3 Tube O.D. (inch)	5/8
