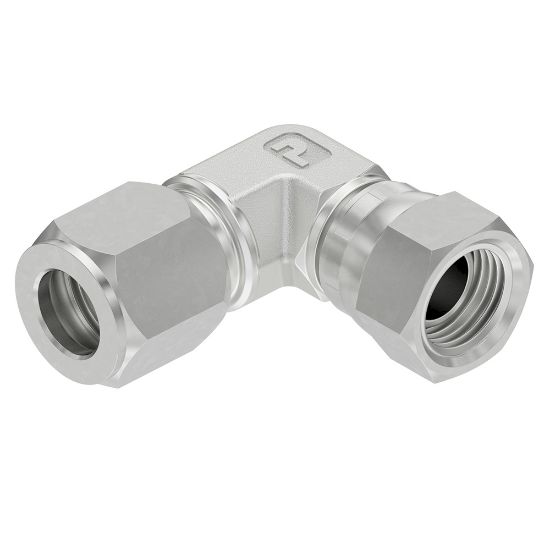

Ferulok 24° Flareless Fittings - 10 C6BU-S

Parker's Ferulok 24° Flareless fittings create a visible heavy bite allowing easy inspection and a rear compression grip which firmly holds the nut and tubing, dampening the effects of vibration.

Availability:	Backordered
Partner Available:	13 in stock

SKU: 10 C6BU-S

$31.43

Products specifications

Attribute name	Attribute value
Division	Tube Fittings Division	Connection 4 Size	na
Maximum Dynamic Pressure	4500 psi	Specifications Met	SAE J514
Connection Type	Flareless Bite Type	Connection 4 Tube Outside Diameter	na
Body Material	Steel	Connection 3 Style	na
Connection 3 Thread Size (inch)	na	Shape	90° Elbow
Connection 2 Thread Size (inch)	na	Connection Style	Tube to Tube
Connection 1 Style	Male Flareless Bite Type	Connection 2 Style	Female Flareless Bite Type Swivel
Connection 1 Tube O.D. (inch)	5/8	O-ring	90 Durometer Nitrile
Connection 2 Tube O.D. (inch)	5/8	Connection 3 Tube O.D. (inch)	na
