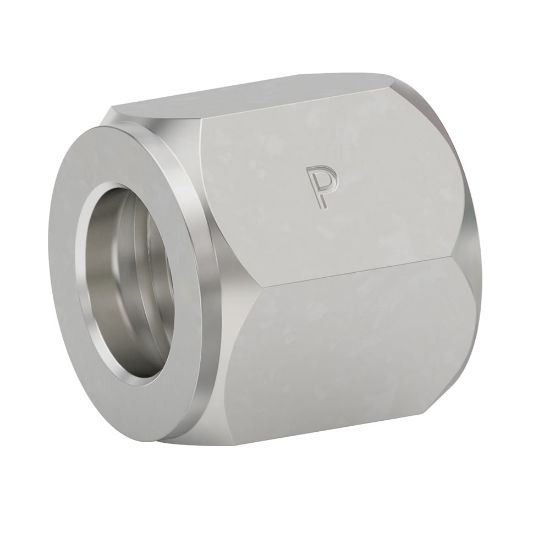

Ferulok 24° Flareless Fittings - 10 BU-SS

Parker's Ferulok 24° Flareless fittings create a visible heavy bite allowing easy inspection and a rear compression grip which firmly holds the nut and tubing, dampening the effects of vibration.

Availability:	Backordered
Partner Available:	35 in stock

SKU: 10 BU-SS

$18.83

Products specifications

Attribute name	Attribute value
Division	Tube Fittings Division	Connection 4 Size	na
Maximum Dynamic Pressure	na	Specifications Met	SAE J514
Connection Type	Flareless Bite Type	Connection 4 Tube Outside Diameter	na
Body Material	Stainless Steel	Connection 3 Style	na
Connection 3 Thread Size (inch)	na	Connection 2 Style	na
Connection 2 Thread Size (inch)	na	Connection Style	na
Shape	Nut	Connection 1 Style	Female Flareless Bite Type
Connection 1 Tube O.D. (inch)	5/8	O-ring	na
Connection 2 Tube O.D. (inch)	na	Connection 3 Tube O.D. (inch)	na
