FEP Corrugated Tubing - CR03-1/2-NC36.000-2C

Name: FEP Corrugated Tubing - CR03-1/2-NC36.000-2C
SKU: CR03-1/2-NC36.000-2C
Availability: OutOfStock

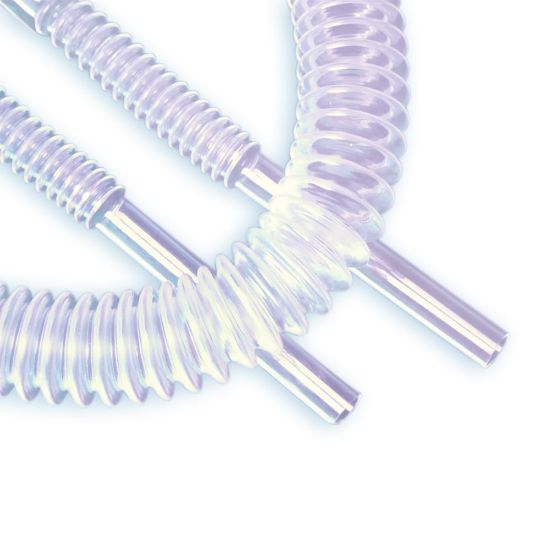

FEP Corrugated Tubing is an extra flexible tubing with a bend radius almost 4x smaller than a smoothbore tube of the same size. It allows for tighter routings without kinking or reducing the inside diameter of the tube. Also available in PFA.

Availability:

Backordered

SKU: CR03-1/2-NC36.000-2C

Qty:

Products specifications

Attribute name	Attribute value
Division	Parflex Division	Media	Chemicals
Application	Instrumentation	Color	Clear
Maximum Operating Pressure	n/a	Minimum Operating Temperature	-75 °C
Size	1/2 inch	Compatible Fitting	TrueSeal™
Tube Material	Fluorinated Ethylene Propylene (FEP)	Tube Outside Diameter	0.75 inch
Cover Color	n/a	Maximum Operating Temperature	200 °F
Weight	Contact the Division lb/ft	Specifications Met	ASTM D3296
Cuff Length	1 inch	Length per Package	3 ft
Minimum Bend Radius	6.35 mm	Cuff Inside Diameter	0.500 inch
Tube Inside Diameter	n/a	Maximum Burst Pressure	n/a
Length (inch)	36	Product Type	1/2in., Corrugated
Tubing Material	FEP	Maximum Working Temperature (F)	200
