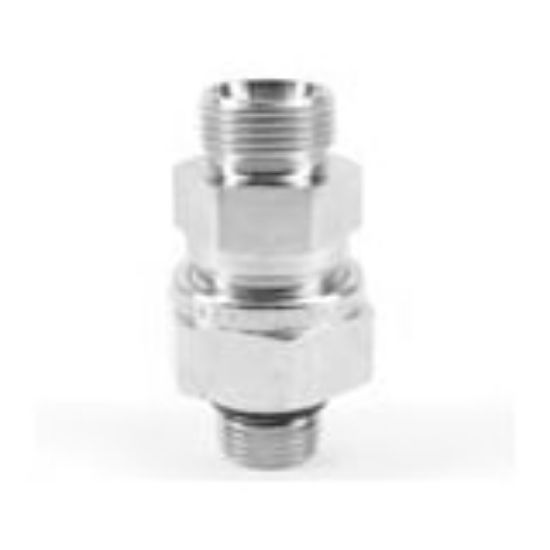

*PRODUCT IMAGE IS REPRESENTATIVE PROVIDED BY THE MANUFACTURER. DO NOT MAKE BUYING DECISIONS SOLEY BASED ON THE IMAGE. PLEASE VERIFY SPECIFICATIONS MEET YOUR REQUIREMENTS.

Ermeto DIN Non return valves - RHZ35LREDOMDCF

Name: Ermeto DIN Non return valves - RHZ35LREDOMDCF
SKU: RHZ35LREDOMDCF
Availability: OutOfStock

Parker non-return valves with nominal pressure ratings up to PN 420 bar offer a wide range of types, making them very flexible.

Availability:

Backordered

SKU: RHZ35LREDOMDCF

Qty:

Products specifications

Attribute name	Attribute value
Minimum Operating Temperature	-40 °C	Body Material	Steel
Configuration	n/a	Seal Material	NBR
Maximum Flow Rate	n/a	Actuation Type	Mechanical
Division	High Pressure Connectors Europe Division	Mounting Type	Screw
Flow Direction	Tube to Port	Cracking Pressure	1 bar
Maximum Operating Pressure	100 bar	Connection 2 Size	35 mm
Connection 3 Size	n/a	Connection 3 Type	n/a
Maximum Operating Temperature	+120 °C	Connection 2 Type	EO 24° cone end
Connection 1 Type	Male metric thread - ED-seal (ISO 9974)	Connection 1 Size	G 1 1/4 A inch
Seal Material	NBR	Materials of Construction	Steel
Flow Direction	Tube to Port	Connection 2 Type	Male BSPP thread - ED-seal (ISO 1179)
Connection 2 Tube Outside Diameter	n/a	Connection 2 Size	n/a
Optional Accessories	n/a	Product Series	Light
Connection 1 Type	24° Cone end	Connection 1 Tube Outside Diameter	35 mm
Nominal Inside Diameter	29 mm	Product Type	Non return valve for 1 tube
Connection 1 Size	G 1 1/4 A

Product resources

Compliance, Certifications & Safety

Bureau Veritas Certificate 23071/CO BV

Literature and Reference Materials

LEAF-4191-UK - Non return valves and special valves
