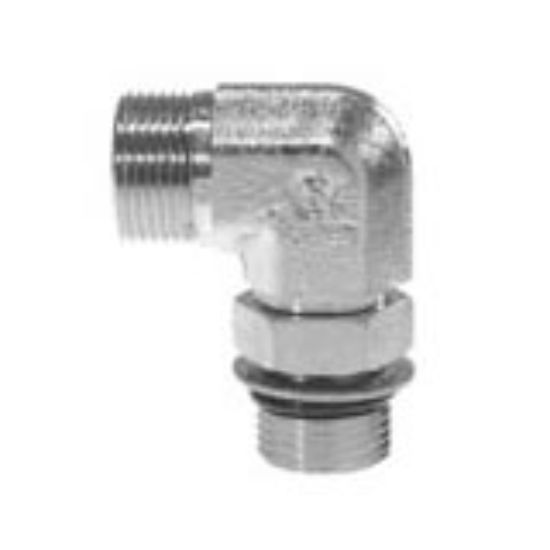

Ermeto DIN Locknut adjustable high pressure tube fittings - WEE42L17/8UNCF

The main function of Ermeto DIN locknut adjustable high pressure tube fittings is to connect different numbers of tubes or hoses. This broad range of fittings is vailable in steel and in stainless steel.

Availability:	Backordered
Partner Available:	Backordered

SKU: WEE42L17/8UNCF

$255.07

Products specifications

Attribute name	Attribute value
Industry	Material Handling	Brand	Ermeto
Division	High Pressure Connectors Europe Division	Configuration	Tube to Port
Product Type	Hydraulic DIN Fittings	Accessories Included	Pre-assembled with Nut and EO-PSR Cutting Ring
Product Style	Adjustable Position	Technology	Fluid & Gas Handling
Division	High Pressure Connectors Europe Division	Seal Material	n/a
Connection 2 Type	Male	Specifications Met	ISO 8434
Application	Fuel Transfer	Shape	Elbow 90°
Body Material	Steel	Maximum Operating Pressure	160 bar
Maximum Fluid Temperature	572 °F	Maximum Ambient Temperature	300 °C
Minimum Fluid Temperature	-40 °F	Seal Type	Sealing Edge
Connection 2 Size	1-7/8"-12 inch	Product Series	EO Light
Connection 1 Type	24° Cone	Minimum Ambient Temperature	-40 °C
For Fluid Type	Fuels	Connection 1 Size	42 mm Tube O.D.
Shape	Elbow 90°	Connection 2 Size	1-7/8"-12 UN-2A
Connection 1 Type	Male 24° Cone	Seal Type	Sealing Edge
Body Material	Steel	Connection 2 Type	Male UNF/UN
Accessories Included	Pre-assembled with Nut and EO-PSR Cutting Ring	Connection 1 Size	42 mm (O.D.)
