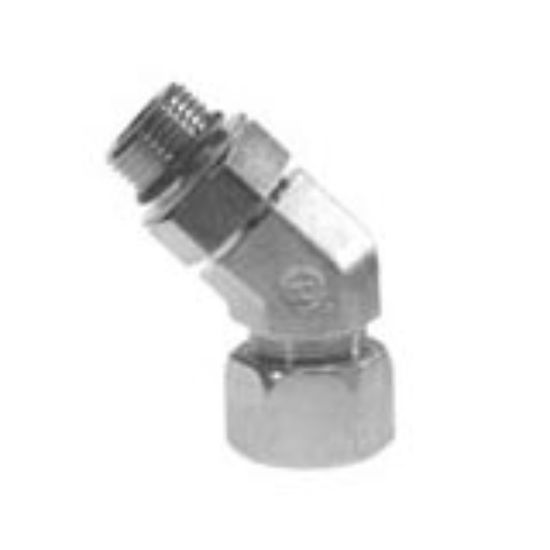

Ermeto DIN Locknut adjustable high pressure tube fittings - VEE15L3/4UNFCF

The main function of Ermeto DIN locknut adjustable high pressure tube fittings is to connect different numbers of tubes or hoses. This broad range of fittings is vailable in steel and in stainless steel.

Availability:	Backordered
Partner Available:	Backordered

SKU: VEE15L3/4UNFCF

Products specifications

Attribute name	Attribute value
Shape	Elbow 45°	Maximum Ambient Temperature	300 °C
Minimum Fluid Temperature	-40 °F	Maximum Fluid Temperature	572 °F
Product Series	EO Light	Minimum Ambient Temperature	-40 °C
Seal Type	Sealing Edge	Industry	Automotive
Brand	Ermeto	Configuration	Tube to Port
Product Type	Hydraulic DIN Fittings	Division	High Pressure Connectors Europe Division
Maximum Operating Pressure	250 bar	Product Style	Adjustable Position
Accessories Included	Pre-assembled with Nut and EO-PSR Cutting Ring	Connection 2 Size	3/4"-16 inch
Specifications Met	ISO 8434	Technology	Fluid & Gas Handling
Connection 1 Size	15 mm Tube O.D.	Seal Material	n/a
Body Material	Steel	Application	Mobile Equipment
Connection 1 Type	Male	Division	High Pressure Connectors Europe Division
Connection 2 Type	UNF/UN	For Fluid Type	Chemicals
Accessories Included	Pre-assembled with Nut and EO-PSR Cutting Ring	Connection 2 Type	Male UNF/UN
Body Material	Steel	Connection 1 Size	15 mm (O.D.)
Connection 2 Size	3/4"-16 UNF-2A	Seal Type	Sealing Edge
Connection 1 Type	Male 24° Cone	Shape	Elbow 45°
