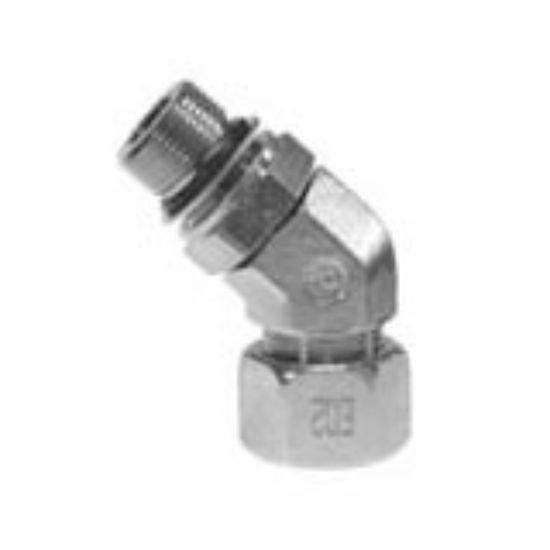

Ermeto DIN Locknut adjustable high pressure tube fittings - VEE08LMORCF

The main function of Ermeto DIN locknut adjustable high pressure tube fittings is to connect different numbers of tubes or hoses. This broad range of fittings is vailable in steel and in stainless steel.

Availability:	Backordered
Partner Available:	Backordered

SKU: VEE08LMORCF

Products specifications

Attribute name	Attribute value
Brand	Ermeto	Connection 1 Size	8 mm Tube O.D.
Connection 2 Size	M12x1.5 mm Thread	Division	High Pressure Connectors Europe Division
Configuration	Tube to Port	Industry	Industrial Manufacturing Equipment
Product Type	Hydraulic DIN Fittings	Maximum Operating Pressure	315 bar
Maximum Fluid Temperature	248 °F	Product Style	Adjustable Position
Seal Material	NBR	Accessories Included	Pre-assembled with Nut and EO-PSR Cutting Ring
Minimum Ambient Temperature	-58 °F	Application	Mobile Equipment
Technology	Fluid & Gas Handling	Specifications Met	ISO 8434
Division	High Pressure Connectors Europe Division	Seal Type	O-Ring
Body Material	Steel	Shape	Elbow 45°
Connection 2 Type	Metric	Maximum Ambient Temperature	320 °F
For Fluid Type	Gases	Minimum Fluid Temperature	-50 °C
Connection 1 Type	24° Cone	Product Series	EO Light
Seal Type	O-Ring	Connection 2 Size	M12x1.5
Connection 1 Type	Male 24° Cone	Shape	Elbow 45°
Accessories Included	Pre-assembled with Nut and EO-PSR Cutting Ring	Body Material	Steel
Connection 2 Type	Male Metric	Connection 1 Size	8 mm (O.D.)
