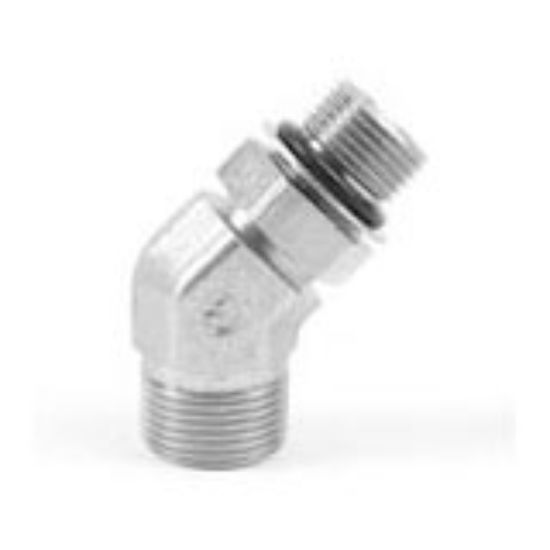

Ermeto DIN Locknut adjustable high pressure tube fittings - VEE06ZLMCF

The main function of Ermeto DIN locknut adjustable high pressure tube fittings is to connect different numbers of tubes or hoses. This broad range of fittings is vailable in steel and in stainless steel.

Availability:	Backordered
Partner Available:	Backordered

SKU: VEE06ZLMCF

Products specifications

Attribute name	Attribute value
For Fluid Type	Fuels	Maximum Fluid Temperature	300 °C
Brand	Ermeto	Connection 1 Size	6 mm Tube O.D.
Product Type	Hydraulic DIN Fittings	Specifications Met	n/a n/a
Division	High Pressure Connectors Europe Division	Configuration	Tube to Port
Maximum Operating Pressure	315 bar	Product Style	Adjustable Position
Accessories Included	Pre-assembled with EO-2 Functional Nut	Connection 2 Size	M10x1.0 mm Thread
Body Material	Steel	Connection 1 Type	Male
Application	Fuel Transfer	Seal Material	n/a
Division	High Pressure Connectors Europe Division	Technology	Fluid & Gas Handling
Maximum Ambient Temperature	300 °C	Industry	Transportation
Minimum Fluid Temperature	-40 °C	Connection 2 Type	Metric
Shape	Elbow 45°	Minimum Ambient Temperature	-40 °F
Product Series	EO Light	Seal Type	Sealing Edge
Connection 2 Type	Male Metric	Connection 2 Size	M10x1.0
Shape	Elbow 45°	Connection 1 Size	6 mm (O.D.)
Connection 1 Type	Male 24° Cone	Seal Type	Sealing Edge
Body Material	Steel	Accessories Included	Pre-assembled with EO-2 Functional Nut
