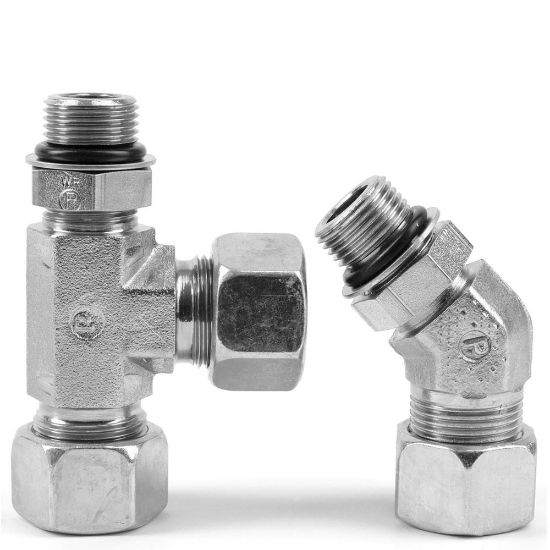

*PRODUCT IMAGE IS REPRESENTATIVE PROVIDED BY THE MANUFACTURER. DO NOT MAKE BUYING DECISIONS SOLEY BASED ON THE IMAGE. PLEASE VERIFY SPECIFICATIONS MEET YOUR REQUIREMENTS.

Ermeto DIN Locknut adjustable high pressure tube fittings - TEE22LM27X2ORVOMDCF

Name: Ermeto DIN Locknut adjustable high pressure tube fittings - TEE22LM27X2ORVOMDCF
SKU: TEE22LM27X2ORVOMDCF
Availability: OutOfStock

The main function of Ermeto DIN locknut adjustable high pressure tube fittings is to connect different numbers of tubes or hoses. This broad range of fittings is vailable in steel and in stainless steel.

Availability:

Backordered

SKU: TEE22LM27X2ORVOMDCF

Qty:

Products specifications

Attribute name	Attribute value
Body Material	Steel	Seal Material	NBR
Connection 1 Type	Male	Industry	Industrial Manufacturing Equipment
Technology	Fluid & Gas Handling	Division	High Pressure Connectors Europe Division
For Fluid Type	Chemicals	Connection 2 Type	24° Cone
Division	High Pressure Connectors Europe Division	Maximum Operating Pressure	160 bar
Minimum Fluid Temperature	-40 °C	Configuration	Tube to Tube
Connection 3 Type	Male	Product Type	Hydraulic DIN Fittings
Brand	Ermeto	Application	Fuel Transfer
Accessories Included	n/a	Product Series	EO Light
Maximum Fluid Temperature	572 °F	Maximum Ambient Temperature	572 °F
Minimum Ambient Temperature	-40 °F	Connection 1 Size	22 mm Tube O.D.
Seal Type	O-Ring	Connection 2 Size	22 mm Tube O.D.
Product Style	Adjustable Position	Specifications Met	ISO 6149
Connection 3 Size	M27x2.0 mm Thread	Shape	Branch Tee
Body Material	Steel	Shape	Branch Tee
Accessories Included	n/a	Connection 1 Type	Male 24° Cone
Connection 1 Size	22 mm (O.D.)	Connection 2 Size	22 mm (O.D.)
Connection 2 Type	Male 24° Cone	Connection 3 Type	Male Metric
Connection 3 Size	M27x2.0	Seal Type	O-Ring
