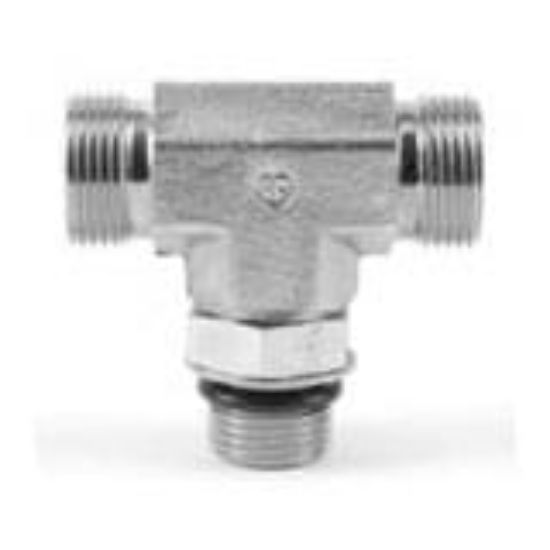

Ermeto DIN Locknut adjustable high pressure tube fittings - TEE16SMCF

Name: Ermeto DIN Locknut adjustable high pressure tube fittings - TEE16SMCF
SKU: TEE16SMCF
Availability: OutOfStock

The main function of Ermeto DIN locknut adjustable high pressure tube fittings is to connect different numbers of tubes or hoses. This broad range of fittings is vailable in steel and in stainless steel.

Availability:

Backordered

SKU: TEE16SMCF

Qty:

Products specifications

Attribute name	Attribute value
Body Material	Steel	Maximum Operating Pressure	250 bar
Industry	Transportation	Connection 2 Type	Male
Seal Material	n/a	Application	Chemical Transfer
Technology	Fluid & Gas Handling	Division	High Pressure Connectors Europe Division
Division	High Pressure Connectors Europe Division	Minimum Fluid Temperature	-40 °C
Configuration	Tube to Tube	Connection 1 Size	16 mm Tube O.D.
Connection 3 Type	Metric	Connection 2 Size	16 mm Tube O.D.
Product Type	Hydraulic DIN Fittings	Brand	Ermeto
Specifications Met	ISO 8434	Connection 1 Type	24° Cone
Accessories Included	Pre-assembled with Nut and EO-PSR Cutting Ring	Seal Type	Sealing Edge
Product Series	EO Heavy	Maximum Fluid Temperature	300 °C
Minimum Ambient Temperature	-40 °F	Maximum Ambient Temperature	300 °C
Product Style	Adjustable Position	Connection 3 Size	M22x1.5 mm Thread
Shape	Branch Tee	For Fluid Type	Oil & Petroleum
Body Material	Steel	Shape	Branch Tee
Accessories Included	Pre-assembled with Nut and EO-PSR Cutting Ring	Connection 1 Type	Male 24° Cone
Connection 1 Size	16 mm (O.D.)	Connection 2 Size	16 mm (O.D.)
Connection 2 Type	Male 24° Cone	Connection 3 Type	Male Metric
Connection 3 Size	M22x1.5	Seal Type	Sealing Edge
