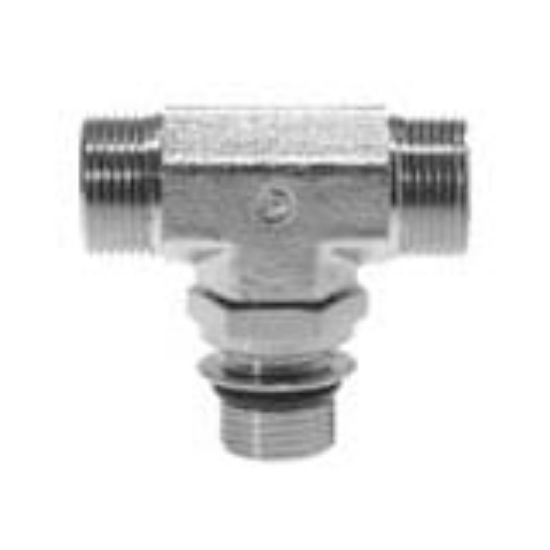

Ermeto DIN Locknut adjustable high pressure tube fittings - TEE12SMOROMDCF

Name: Ermeto DIN Locknut adjustable high pressure tube fittings - TEE12SMOROMDCF
SKU: TEE12SMOROMDCF
Availability: OutOfStock

The main function of Ermeto DIN locknut adjustable high pressure tube fittings is to connect different numbers of tubes or hoses. This broad range of fittings is vailable in steel and in stainless steel.

Availability:

Backordered

SKU: TEE12SMOROMDCF

Qty:

Products specifications

Attribute name	Attribute value
Body Material	Steel	Seal Material	NBR
Maximum Operating Pressure	250 bar	Connection 1 Type	Male
Industry	Industrial Manufacturing Equipment	Technology	Fluid & Gas Handling
Division	High Pressure Connectors Europe Division	For Fluid Type	Gases
Connection 2 Type	24° Cone	Division	High Pressure Connectors Europe Division
Maximum Fluid Temperature	120 °C	Connection 1 Size	12 mm Tube O.D.
Configuration	Tube to Tube	Connection 2 Size	12 mm Tube O.D.
Connection 3 Type	Metric	Product Type	Hydraulic DIN Fittings
Brand	Ermeto	Application	Fuel Transfer
Accessories Included	n/a	Product Series	EO Heavy
Seal Type	O-Ring	Product Style	Adjustable Position
Minimum Fluid Temperature	-58 °F	Maximum Ambient Temperature	320 °F
Minimum Ambient Temperature	-50 °C	Specifications Met	ISO 6149
Connection 3 Size	M18x1.5 mm Thread	Shape	Branch Tee
Body Material	Steel	Shape	Branch Tee
Accessories Included	n/a	Connection 1 Type	Male 24° Cone
Connection 1 Size	12 mm (O.D.)	Connection 2 Size	12 mm (O.D.)
Connection 2 Type	Male 24° Cone	Connection 3 Type	Male Metric
Connection 3 Size	M18x1.5	Seal Type	O-Ring
