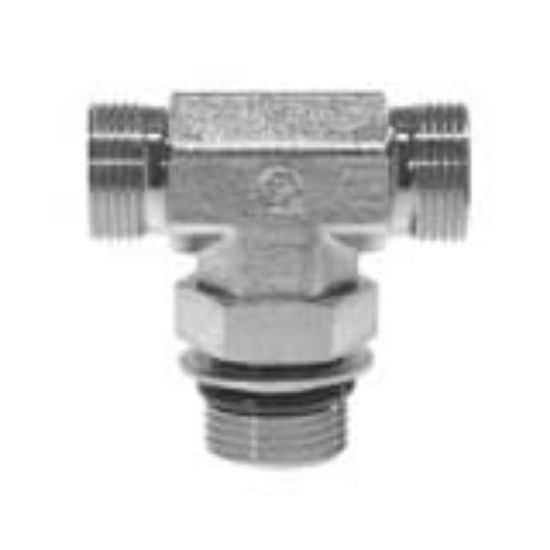

Ermeto DIN Locknut adjustable high pressure tube fittings - TEE08L7/16UNFCF

Name: Ermeto DIN Locknut adjustable high pressure tube fittings - TEE08L7/16UNFCF
SKU: TEE08L7/16UNFCF
Availability: OutOfStock

The main function of Ermeto DIN locknut adjustable high pressure tube fittings is to connect different numbers of tubes or hoses. This broad range of fittings is vailable in steel and in stainless steel.

Availability:

Backordered

SKU: TEE08L7/16UNFCF

Qty:

Products specifications

Attribute name	Attribute value
Body Material	Steel	Connection 1 Type	Male
Connection 2 Type	Male	Seal Material	n/a
Industry	Industrial Manufacturing Equipment	Technology	Fluid & Gas Handling
Maximum Operating Pressure	315 bar	Division	High Pressure Connectors Europe Division
Application	Hydraulics	For Fluid Type	Chemicals
Specifications Met	ISO 11926	Division	High Pressure Connectors Europe Division
Connection 1 Size	8 mm Tube O.D.	Connection 2 Size	8 mm Tube O.D.
Minimum Fluid Temperature	-40 °F	Configuration	Tube to Tube
Product Type	Hydraulic DIN Fittings	Brand	Ermeto
Accessories Included	Pre-assembled with Nut and EO-PSR Cutting Ring	Seal Type	Sealing Edge
Product Series	EO Light	Maximum Fluid Temperature	300 °C
Minimum Ambient Temperature	-40 °C	Maximum Ambient Temperature	300 °C
Product Style	Adjustable Position	Shape	Branch Tee
Connection 3 Size	7/16"-20 inch	Connection 3 Type	UNF/UN
Body Material	Steel	Shape	Branch Tee
Accessories Included	Pre-assembled with Nut and EO-PSR Cutting Ring	Connection 1 Size	8 mm (O.D.)
Connection 1 Type	Male 24° Cone	Connection 2 Size	8 mm (O.D.)
Connection 2 Type	Male 24° Cone	Connection 3 Size	7/16"-20 UNF-2A
Connection 3 Type	Male UNF/UN	Seal Type	Sealing Edge
