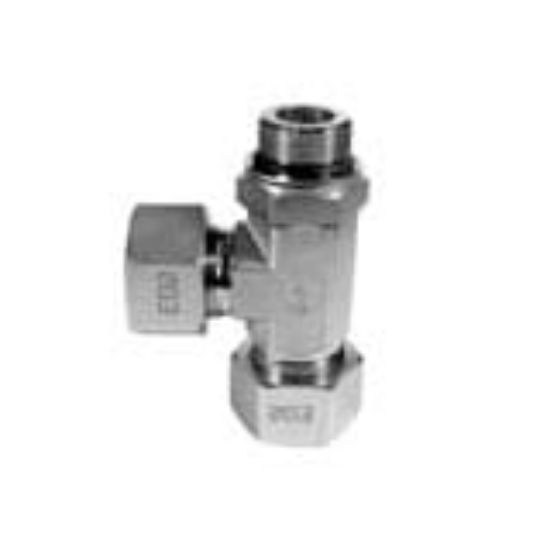

Ermeto DIN Locknut adjustable high pressure tube fittings - LEE12LMOROMDCF

Name: Ermeto DIN Locknut adjustable high pressure tube fittings - LEE12LMOROMDCF
SKU: LEE12LMOROMDCF
Availability: OutOfStock

The main function of Ermeto DIN locknut adjustable high pressure tube fittings is to connect different numbers of tubes or hoses. This broad range of fittings is vailable in steel and in stainless steel.

Availability:

Backordered

SKU: LEE12LMOROMDCF

Qty:

Products specifications

Attribute name	Attribute value
Body Material	Steel	Seal Material	NBR
Maximum Operating Pressure	250 bar	Industry	Agriculture
Technology	Fluid & Gas Handling	Division	High Pressure Connectors Europe Division
Connection 2 Type	24° Cone	Division	High Pressure Connectors Europe Division
Connection 1 Size	12 mm Tube O.D.	Configuration	Tube to Tube
Connection 2 Size	12 mm Tube O.D.	Connection 3 Type	Male
Application	Oilfield	Product Type	Hydraulic DIN Fittings
Brand	Ermeto	Specifications Met	ISO 8434
Connection 1 Type	24° Cone	Accessories Included	n/a
Product Series	EO Light	Seal Type	O-Ring
Product Style	Adjustable Position	Maximum Fluid Temperature	248 °F
Minimum Fluid Temperature	-50 °C	Maximum Ambient Temperature	150 °C
Minimum Ambient Temperature	-50 °C	Shape	Run Tee
Connection 3 Size	M16x1.5 mm Thread	For Fluid Type	Oil & Petroleum
Body Material	Steel	Shape	Run Tee
Accessories Included	n/a	Connection 1 Type	Male 24° Cone
Connection 1 Size	12 mm (O.D.)	Connection 2 Size	12 mm (O.D.)
Connection 2 Type	Male 24° Cone	Connection 3 Type	Male Metric
Connection 3 Size	M16x1.5	Seal Type	O-Ring
