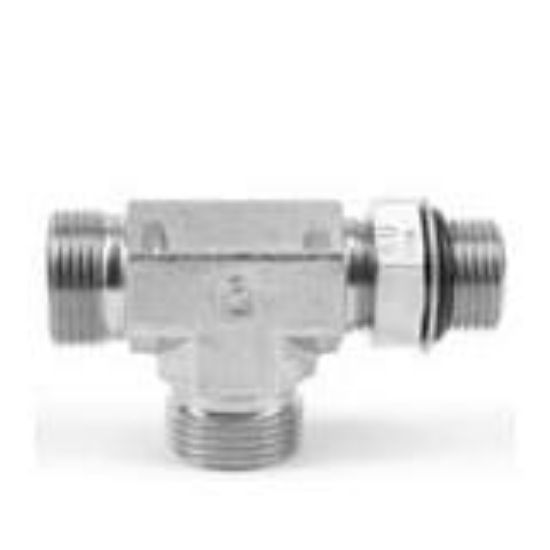

Ermeto DIN Locknut adjustable high pressure tube fittings - LEE10SRCF

The main function of Ermeto DIN locknut adjustable high pressure tube fittings is to connect different numbers of tubes or hoses. This broad range of fittings is vailable in steel and in stainless steel.

Availability:	Backordered
Partner Available:	Backordered

SKU: LEE10SRCF

Products specifications

Attribute name	Attribute value
Application	Packaging	Body Material	Steel
Maximum Operating Pressure	250 bar	Seal Material	n/a
Technology	Fluid & Gas Handling	Industry	Construction
Division	High Pressure Connectors Europe Division	For Fluid Type	Hydraulic Fluids
Connection 2 Type	24° Cone	Division	High Pressure Connectors Europe Division
Connection 1 Size	10 mm Tube O.D.	Connection 2 Size	10 mm Tube O.D.
Minimum Fluid Temperature	-40 °C	Configuration	Tube to Tube
Connection 3 Type	Male	Product Type	Hydraulic DIN Fittings
Brand	Ermeto	Specifications Met	ISO 8434
Connection 1 Type	24° Cone	Accessories Included	Pre-assembled with Nut and EO-PSR Cutting Ring
Seal Type	Sealing Edge	Product Series	EO Heavy
Maximum Fluid Temperature	572 °F	Minimum Ambient Temperature	-40 °C
Maximum Ambient Temperature	300 °C	Product Style	Adjustable Position
Shape	Run Tee	Connection 3 Size	G 3/8 A inch Thread
Body Material	Steel	Shape	Run Tee
Connection 3 Type	Male BSPP	Accessories Included	Pre-assembled with Nut and EO-PSR Cutting Ring
Connection 1 Size	10 mm (O.D.)	Connection 1 Type	Male 24° Cone
Connection 2 Size	10 mm (O.D.)	Connection 2 Type	Male 24° Cone
Seal Type	Sealing Edge	Connection 3 Size	G 3/8 A
