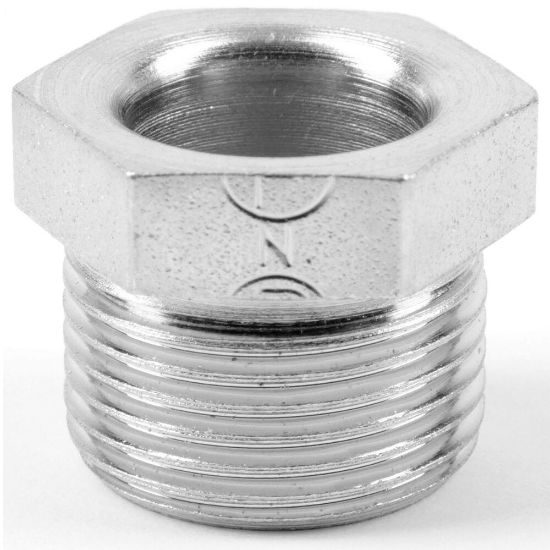

Ermeto DIN fitting components for high pressure hydraulic tube fittings - S12LCFX

Name: Ermeto DIN fitting components for high pressure hydraulic tube fittings - S12LCFX
SKU: S12LCFX
Availability: OutOfStock

Ermeto DIN fitting components for high pressure hydraulic tube fittings are indispensable items in order to build up a complete fitting series (EO-PSR, EO-2, EO2-FORM).

Availability:

Backordered

SKU: S12LCFX

Qty:

Products specifications

Attribute name	Attribute value
Product Style	Components	Maximum Fluid Temperature	572 °F
Connection 2 Type	Metric	Minimum Fluid Temperature	-40 °F
Maximum Ambient Temperature	300 °C	Connection 1 Size	12 mm Tube O.D.
Connection 1 Type	Tube	Specifications Met	DIN 3854
Seal Type	Sealing Edge	Minimum Ambient Temperature	-40 °F
Product Series	EO Light	Shape	n/a
Connection 2 Size	M18x1.5 mm Thread	Brand	Ermeto
For Fluid Type	Hydraulic Fluids	Division	High Pressure Connectors Europe Division
Industry	Industrial Manufacturing Equipment	Configuration	Tube to Port
Product Type	Hydraulic DIN Fittings	Maximum Operating Pressure	315 bar
Application	Industrial	Division	High Pressure Connectors Europe Division
Technology	Fluid & Gas Handling	Seal Material	n/a
Body Material	Steel
Connection 2 Size	M18x1.5	Body Material	Steel
Connection 1 Size	12 mm (O.D.)	Product Style	Sleeve Screw
