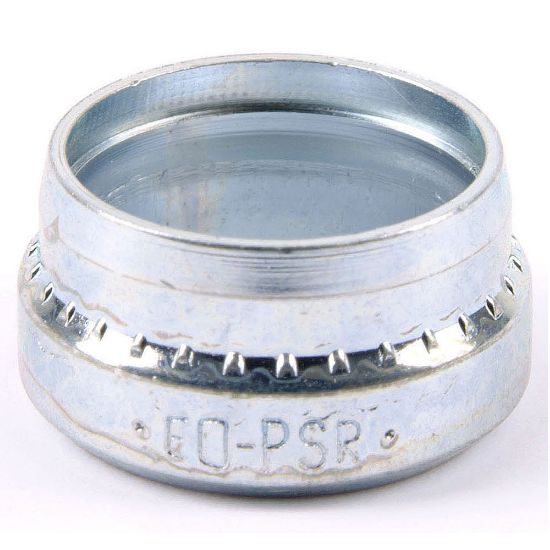

Ermeto DIN fitting components for high pressure hydraulic tube fittings - PSR12LX

Ermeto DIN fitting components for high pressure hydraulic tube fittings are indispensable items in order to build up a complete fitting series (EO-PSR, EO-2, EO2-FORM).

Availability:	69 in stock
Partner Available:	4168 in stock

SKU: PSR12LX

$1.58

Products specifications

Attribute name	Attribute value
Division	High Pressure Connectors Europe Division	For Fluid Type	Hydraulic Fluids
Brand	Ermeto	Product Type	Hydraulic DIN Fittings
Minimum Ambient Temperature	-60 °C	Seal Type	Sealing Edge
Application	Hydraulics	Product Series	EO Light
Maximum Operating Pressure	500 bar	Shape	n/a
Configuration	n/a	Connection 1 Size	12 mm Tube O.D.
Division	High Pressure Connectors Europe Division	Industry	Transportation
Product Style	Components	Connection 1 Type	Tube
Minimum Fluid Temperature	-76 °F	Maximum Fluid Temperature	400 °C
Technology	Fluid & Gas Handling	Body Material	Steel
Seal Material	n/a	Specifications Met	ISO 8434
Maximum Ambient Temperature	400 °C
Product Style	Progressive Stop Ring	Body Material	Steel
Connection 1 Size	12 mm (O.D.)
