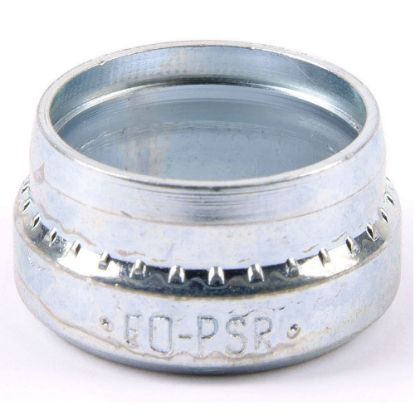

Ermeto DIN fitting components for high pressure hydraulic tube fittings - FM10LCF

Ermeto DIN fitting components for high pressure hydraulic tube fittings are indispensable items in order to build up a complete fitting series (EO-PSR, EO-2, EO2-FORM).

Availability:	47 in stock
Partner Available:	663 in stock

SKU: FM10LCF

$7.12

Products specifications

Attribute name	Attribute value
Application	Industrial	Body Material	Steel
Seal Material	NBR	Industry	Material Handling
Technology	Fluid & Gas Handling	Shape	n/a
Division	High Pressure Connectors Europe Division	For Fluid Type	Steam
Maximum Operating Pressure	500 bar	Connection 2 Size	M16x1.5 mm Thread
Division	High Pressure Connectors Europe Division	Connection 2 Type	Metric
Connection 1 Size	10 mm Tube O.D.	Minimum Fluid Temperature	-40 °F
Connection 1 Type	Tube	Configuration	Tube to Port
Product Type	Hydraulic DIN Fittings	Brand	Ermeto
Specifications Met	ISO 8434	Seal Type	Sealing Edge
Product Series	EO Light	Maximum Fluid Temperature	572 °F
Minimum Ambient Temperature	-40 °F	Maximum Ambient Temperature	300 °C
Product Style	EO2-Functional Nut
Body Material	Steel	Connection 2 Size	M16x1.5
Connection 1 Size	10 mm (O.D.)	Product Style	EO2-Functional Nut
