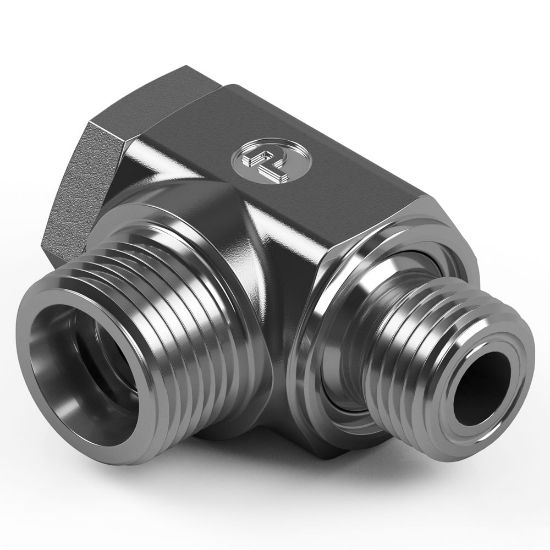

Ermeto DIN banjo fittings - WHK42LRCF

The main function of Ermeto DIN banjo fittings is to connect different numbers of tubes or hoses. This broad range of DIN fittings is available in steel and in stainless steel.

Availability:	Backordered
Partner Available:	Backordered

SKU: WHK42LRCF

$389.85

Products specifications

Attribute name	Attribute value
Application	Packaging	Body Material	Steel
Industry	Agriculture	Connection 1 Type	Male
Technology	Fluid & Gas Handling	Division	High Pressure Connectors Europe Division
Shape	Elbow 90°	Division	High Pressure Connectors Europe Division
Connection 2 Type	BSPP	Maximum Operating Pressure	160 bar
For Fluid Type	Fuels	Minimum Fluid Temperature	-40 °C
Configuration	Tube to Port	Product Type	Hydraulic DIN Fittings
Brand	Ermeto	Specifications Met	ISO 8434
Accessories Included	Pre-assembled with Nut and EO-PSR Cutting Ring	Product Series	EO Light
Maximum Fluid Temperature	572 °F	Maximum Ambient Temperature	572 °F
Minimum Ambient Temperature	-40 °F	Connection 1 Size	42 mm Tube O.D.
Seal Material	Metal	Connection 2 Size	G 1-1/2 A inch Thread
Seal Type	Sealing Ring	Product Style	Banjo
Body Material	Steel	Shape	Elbow 90°
Connection 2 Type	Male BSPP	Accessories Included	Pre-assembled with Nut and EO-PSR Cutting Ring
Connection 1 Type	Male 24° Cone	Connection 1 Size	42 mm (O.D.)
Product Series	EO Light	Connection 2 Size	G 1-1/2 A
Seal Type	Sealing Ring
