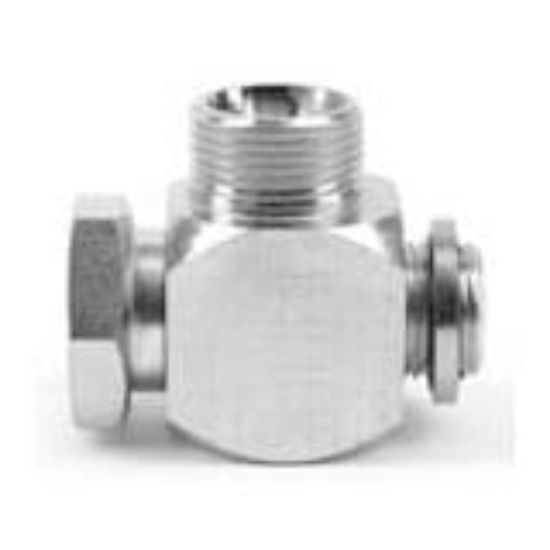

Ermeto DIN banjo fittings - WH08LMKDSOMD71

Name: Ermeto DIN banjo fittings - WH08LMKDSOMD71
SKU: WH08LMKDSOMD71
Availability: OutOfStock

The main function of Ermeto DIN banjo fittings is to connect different numbers of tubes or hoses. This broad range of DIN fittings is available in steel and in stainless steel.

Availability:

Backordered

SKU: WH08LMKDSOMD71

Qty:

Products specifications

Attribute name	Attribute value
Connection 1 Type	Male	Application	Chemical Transfer
Body Material	Stainless Steel	Technology	Fluid & Gas Handling
Maximum Operating Pressure	315 bar	Industry	Marine
Division	High Pressure Connectors Europe Division	Shape	Elbow 90°
Division	High Pressure Connectors Europe Division	Connection 2 Type	Metric
Connection 1 Size	8 mm Tube O.D.	Connection 2 Size	M12x1.5 mm Thread
Specifications Met	DIN	For Fluid Type	Fuels
Configuration	Tube to Port	Product Type	Hydraulic DIN Fittings
Brand	Ermeto	Accessories Included	Pre-assembled with Nut and EO-DPR Cutting Ring
Product Series	EO Light	Maximum Fluid Temperature	752 °F
Minimum Fluid Temperature	-60 °C	Maximum Ambient Temperature	752 °F
Minimum Ambient Temperature	-76 °F	Seal Material	FKM (Eolastic)
Seal Type	Soft Seal	Product Style	Banjo
Body Material	Stainless Steel	Shape	Elbow 90°
Connection 2 Size	M12x1.5	Accessories Included	Pre-assembled with Nut and EO-DPR Cutting Ring
Connection 1 Size	8 mm (O.D.)	Connection 1 Type	Male 24° Cone
Connection 2 Type	Male Metric	Product Series	EO Light
Seal Type	Soft Seal
