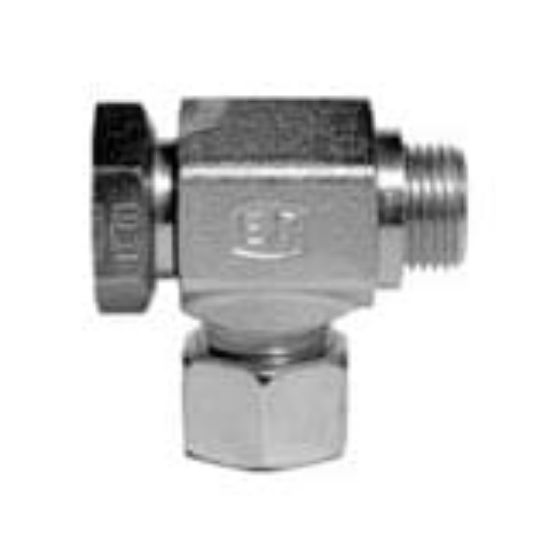

Ermeto DIN banjo fittings - WH06SR71

Name: Ermeto DIN banjo fittings - WH06SR71
SKU: WH06SR71
Availability: OutOfStock

The main function of Ermeto DIN banjo fittings is to connect different numbers of tubes or hoses. This broad range of DIN fittings is available in steel and in stainless steel.

Availability:

Backordered

SKU: WH06SR71

Qty:

Products specifications

Attribute name	Attribute value
Connection 1 Type	Male	Connection 2 Type	Male
Body Material	Stainless Steel	Technology	Fluid & Gas Handling
Maximum Operating Pressure	315 bar	Industry	Construction
Division	High Pressure Connectors Europe Division	Application	Hydraulics
For Fluid Type	Chemicals	Shape	Elbow 90°
Division	High Pressure Connectors Europe Division	Connection 1 Size	6 mm Tube O.D.
Specifications Met	DIN	Configuration	Tube to Port
Product Type	Hydraulic DIN Fittings	Brand	Ermeto
Accessories Included	Pre-assembled with Nut and EO-DPR Cutting Ring	Product Series	EO Heavy
Maximum Fluid Temperature	400 °C	Minimum Fluid Temperature	-76 °F
Maximum Ambient Temperature	400 °C	Minimum Ambient Temperature	-60 °C
Seal Material	Metal	Connection 2 Size	G 1/4 A inch Thread
Seal Type	Sealing Ring	Product Style	Banjo
Body Material	Stainless Steel	Shape	Elbow 90°
Connection 2 Type	Male BSPP	Accessories Included	Pre-assembled with Nut and EO-DPR Cutting Ring
Connection 1 Type	Male 24° Cone	Product Series	EO Heavy
Connection 2 Size	G 1/4 A	Seal Type	Sealing Ring
Connection 1 Size	6 mm O.D
