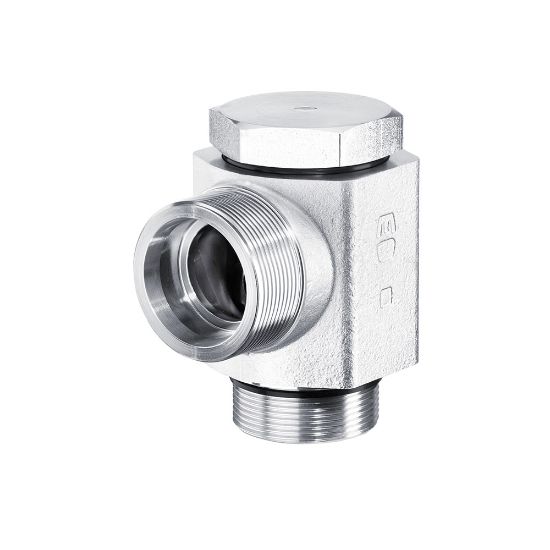

Ermeto DIN banjo fittings - TH08SRKDSOMDCF

Name: Ermeto DIN banjo fittings - TH08SRKDSOMDCF
SKU: TH08SRKDSOMDCF
Availability: OutOfStock

The main function of Ermeto DIN banjo fittings is to connect different numbers of tubes or hoses. This broad range of DIN fittings is available in steel and in stainless steel.

Availability:

Backordered

SKU: TH08SRKDSOMDCF

Qty:

Products specifications

Attribute name	Attribute value
Body Material	Steel	Connection 1 Type	Male
Connection 2 Type	Male	Industry	Industrial Manufacturing Equipment
Technology	Fluid & Gas Handling	Maximum Operating Pressure	400 bar
Division	High Pressure Connectors Europe Division	Application	Hydraulics
For Fluid Type	Steam	Division	High Pressure Connectors Europe Division
Connection 1 Size	8 mm Tube O.D.	Connection 2 Size	8 mm Tube O.D.
Minimum Fluid Temperature	-40 °F	Configuration	Tube to Port
Connection 3 Type	BSPP	Product Type	Hydraulic DIN Fittings
Brand	Ermeto	Specifications Met	ISO 1179
Accessories Included	n/a	Product Series	EO Heavy
Maximum Fluid Temperature	300 °C	Maximum Ambient Temperature	572 °F
Minimum Ambient Temperature	-40 °F	Seal Material	Metal
Product Style	Adjustable Position	Shape	Branch Tee
Connection 3 Size	G 1/4 A inch Thread	Seal Type	Sealing Ring
Body Material	Steel	Shape	Branch Tee
Connection 3 Type	Male BSPP	Accessories Included	n/a
Connection 1 Size	8 mm (O.D.)	Connection 1 Type	Male 24° Cone
Product Series	EO Heavy	Connection 2 Size	8 mm (O.D.)
Connection 2 Type	Male 24° Cone	Connection 3 Size	G 1/4 A
Seal Type	Sealing Ring
