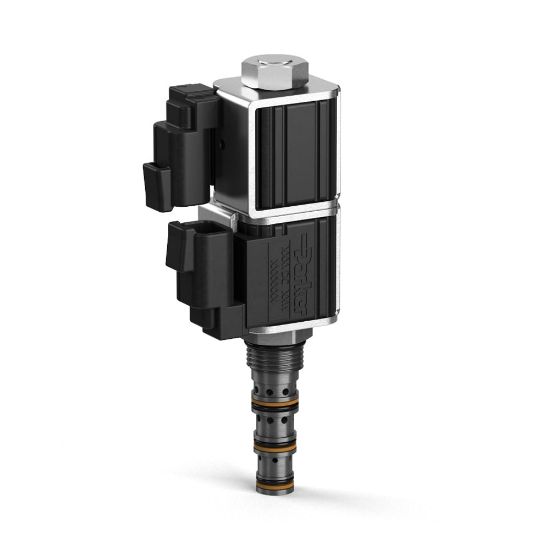

Directional Control Proportional Valves - GP02531V

Name: Directional Control Proportional Valves - GP02531V
SKU: GP02531V
Availability: OutOfStock

Parker’s family of 3-position, 4-way proportional directional control valves come standard with closed or float center spools and are capable of flows up to 32 lpm (8.5 gpm) and pressures as high as 350 bar (5000 psi).

Availability:

Backordered

SKU: GP02531V

Qty:

Products specifications

Attribute name	Attribute value
Maximum Operating Pressure	350 bar	Seal Material	Fluorocarbon
Body Material	n/a	Minimum Operating Temperature	-26 °C
Maximum Kinematic Viscosity	45-2000 SSU (6 to 420 cSt)	Division	Hydraulic Systems Division
Weight	0.15 kg	Maximum Inlet Pressure Rating	5000 psi
Installation Torque	30 Nm	Coil Nut Tightening Torque	3 lb-ft
Cavity Size	C08-4	For Fluid Type	Mineral-based or synthetic hydraulic fluids
Maximum Operating Temperature	+400 °F	Frequency	100-400 Hz
Actuation Type	Electrical, Manual	Operation Type	Solenoid operated, Manually operated
Valve Material	All parts steel. All operating parts hardened steel	Operating Temperature	-26 to +204 °C
Filter Efficiency Rating	ISO 4406 18/16/13, SAE Class 4	Configuration	Floating Center
Coil Type	1/2" Super Coil	Response Time	50 ms
Maximum Tank Pressure	3000 psi	Function	Proportional Directional Control
Leak Rate	10 @ 3000 PSI (210 BAR) cm3/min	Hysteresis	Less than 6%
Flow Rate Accuracy	+/- 15% @ 75% Nominal Current and Constant DeltaP Maintained with Pressure Compensator	Variation of Opening Point	25% - 30% of Input Signal
Current	1.15 @ 12 VDC, 1.58 @ 12 VDC, 0.58 @ 24 VDC, 0.79 @ 24 VDC A	Flow Rate	2.7, 4 Gal/min
Maximum Flow Rate	10, 15 L/min	Power Consumption	14, 19 W
Override Functionality	Non-Detented
Seal Material	Fluorocarbon	Maximum Inlet Pressure Rating	5000 PSI, 350 BAR
Configuration	Floating Center	Flow Rate	2.7, 4 GAL/MIN, 10, 15 L/MIN
Override Functionality	Non-Detented
