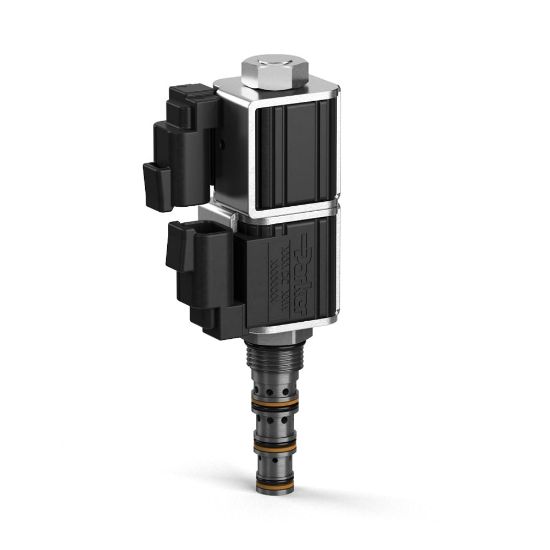

Directional Control Proportional Valves - GP02522N

Name: Directional Control Proportional Valves - GP02522N
SKU: GP02522N
Availability: OutOfStock

Parker’s family of 3-position, 4-way proportional directional control valves come standard with closed or float center spools and are capable of flows up to 32 lpm (8.5 gpm) and pressures as high as 350 bar (5000 psi).

Availability:

Backordered

SKU: GP02522N

Qty:

Products specifications

Attribute name	Attribute value
Maximum Operating Pressure	350 bar	Seal Material	Nitrile
Body Material	n/a	Maximum Kinematic Viscosity	45-2000 SSU (6 to 420 cSt)
Division	Hydraulic Systems Division	Minimum Operating Temperature	-34 °C
Maximum Inlet Pressure Rating	350 bar	Installation Torque	30 Nm
Coil Nut Tightening Torque	3 lb-ft	Cavity Size	C08-4
For Fluid Type	Mineral-based or synthetic hydraulic fluids	Maximum Operating Temperature	+121 °C
Frequency	100-400 Hz	Configuration	Normally Closed
Actuation Type	Electrical, Manual	Operation Type	Solenoid operated, Manually operated
Valve Material	All parts steel. All operating parts hardened steel	Operating Temperature	-30 to +250 °F
Filter Efficiency Rating	ISO 4406 18/16/13, SAE Class 4	Coil Type	1/2" Super Coil
Response Time	50 ms	Maximum Tank Pressure	3000 psi
Function	Proportional Directional Control	Leak Rate	10 @ 3000 PSI (210 BAR) cm3/min
Hysteresis	Less than 6%	Flow Rate Accuracy	+/- 15% @ 75% Nominal Current and Constant DeltaP Maintained with Pressure Compensator
Variation of Opening Point	25% - 30% of Input Signal	Weight	0.34 lb
Current	1.15 @ 12 VDC, 1.58 @ 12 VDC, 0.58 @ 24 VDC, 0.79 @ 24 VDC A	Flow Rate	17, 21 L/min
Maximum Flow Rate	4.5, 5.5 Gal/min	Power Consumption	14, 19 W
Override Functionality	Detented
Seal Material	Nitrile	Configuration	Normally Closed
Maximum Inlet Pressure Rating	5000 PSI, 350 BAR	Flow Rate	4.5, 5.5 GAL/MIN, 17, 21 L/MIN
Override Functionality	Detented
