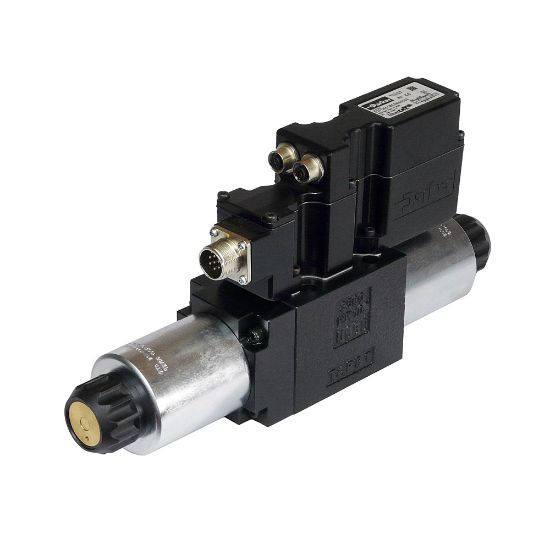

Direct Operated Proportional Directional Control Valve - Series D1FC / D3FC - D3FCE01UC9NN03

Name: Direct Operated Proportional Directional Control Valve - Series D1FC / D3FC - D3FCE01UC9NN03
SKU: D3FCE01UC9NN03
Availability: OutOfStock

Representing cutting-edge technology, Parker’s new compact D1FC (NG06) / D3FC (NG10) provide optimized process speed with high dynamics and flow for various applications. Optionally with EtherCAT® interface for high data speed and short cycle times.

Availability:

Backordered

SKU: D3FCE01UC9NN03

Qty:

Products specifications

Attribute name	Attribute value
Division	Industrial Systems Division Europe	Maximum Operating Pressure	350 bar
Mounting Type	Subplate	Seal Material	NBR
Body Material	Cast Iron	Maximum Flow Rate	n/a
Operation Type	Direct	Mounting Position	Unrestricted
Weight	7.7 kg	Minimum Fluid Temperature	-25 °C
Maximum Ambient Temperature	60 °C	Maximum Kinematic Viscosity	400 cSt
Minimum Ambient Temperature	-20 °C	Actuation Type	Proportional
Function	3-Way	For Fluid Type	Hydraulic Oil According to DIN 51524 ... 535
Minimum Kinematic Viscosity	20 cSt	Filter Efficiency Rating	ISO 4406; 18/16/13
Product Series	Proportional DC Valve	Maximum Fluid Temperature	60 °C
Mounting Style	DIN 24340 / ISO 4401 / CETOP RP121 / NFPA	Electronics Type	Onboard
Power Supply Voltage	18...30, electric shut-off at < 17, ripple < 5 % eff., surge free V	Ingress Protection Rating	IP65 in accordance with EN 60529
Variation of Opening Point	set to 10 % command signal	Pressure Differential	5 bar
Hysteresis	< 0,1 %	Spool Design	Spool/body
Vibration Resistance	10 Sinus 5...2000 Hz Acc. IEC 68-2-6	Leak Rate	<100 (overlap spool)
Response Time	40 ms
Seal Material	NBR	Port Connection	NG10 / CETOP 05
Marking	Standard	Flow Rate	75 l/min
Connection Type	6 + PE	Signal Input	EtherCAT bus type N
Spool Type	Overlap	Defined Spool Position At Power Down	Center position
Spool Code	E01, equal metering, 4-way, 3 position, all ports open	Signal Output	+10...0...-10 V
Function	0 to 4096 = P-A
