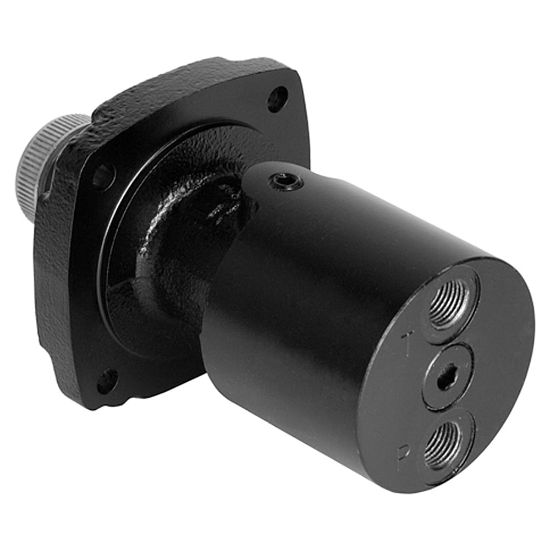

Direct Operated Pressure Relief Valve - Series R1E02 - R1E02-3324A1

Name: Direct Operated Pressure Relief Valve - Series R1E02 - R1E02-3324A1
SKU: R1E02-3324A1
Availability: OutOfStock

Direct operated pressure relief valves series R1E02 are seated type valves typically used for remote control of pilot operated pressure valves or compensators of variable pumps.

Availability:

Backordered

SKU: R1E02-3324A1

Qty:

Products specifications

Attribute name	Attribute value
Product Series	Pressure Valve	Maximum Operating Pressure	350 bar
Maximum Operating Temperature	60 °C	Connection Size	G 1/4
Actuation Type	Manually	Mounting Position	Unrestricted
Operation Type	Direct	Minimum Operating Temperature	-20 °C
Maximum Flow Rate	3.8 L/min	Division	Hydraulic Valve Systems Division Europe
For Fluid Type	Hydraulic Oil According to DIN 51524	Seal Material	NBR
Weight	1.0 kg	Body Material	Steel
Pressure Control Range	210 bar
Mounting Style	Subplate mounting	Pressure Control Range	210 bar
Pressure Adjustment Control Type	Cylinder lock
