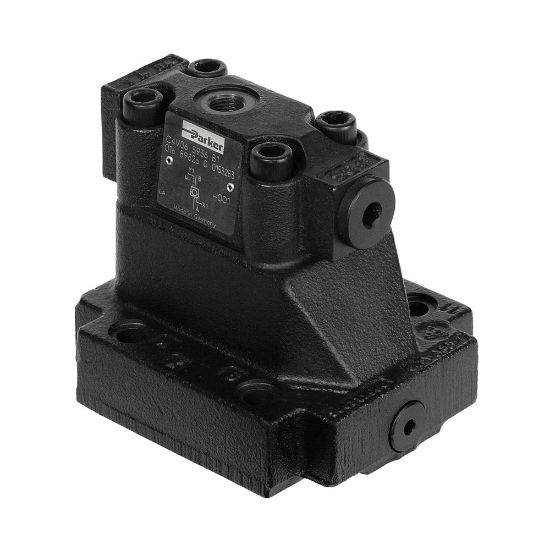

Direct Operated / Hydraulically Pilot Operated Check Valve - Series C4V - 016-88568-5

Name: Direct Operated / Hydraulically Pilot Operated Check Valve - Series C4V - 016-88568-5
SKU: 016-88568-5
Availability: OutOfStock

Parker direct operated and hydraulically pilot operated check valves series C4V are robust and almost universally applicable. They are equipped with a leak-free seat cartridge.

Availability:

Backordered

SKU: 016-88568-5

Qty:

Products specifications

Attribute name	Attribute value
Seal Material	FPM	Mounting Type	Subplate
Product Series	Check Valve	Configuration	Hydraulic Pilot Operated
Actuation Type	Hydraulic Pressure	Connection Size	n/a
Division	Industrial Systems Division Europe	Flow Direction	A to B
Maximum Operating Pressure	350 bar	Minimum Operating Temperature	-20 °C
Connection Type	ISO 5781	Body Material	Cast Iron
Cracking Pressure	1.5 bar	Weight	2.8 kg
Maximum Flow Rate	150 L/min	Maximum Operating Temperature	60 °C
Opening Pressure Ratio	3:1	Seal Material	FPM
Port Connection	NG10 / CETOP 05	Options	Standard
Operation Type	Pilot	Actuation Type	Hydraulically
