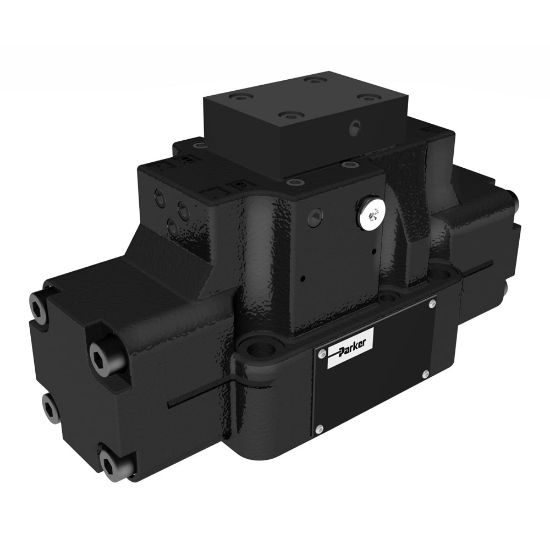

*PRODUCT IMAGE IS REPRESENTATIVE PROVIDED BY THE MANUFACTURER. DO NOT MAKE BUYING DECISIONS SOLEY BASED ON THE IMAGE. PLEASE VERIFY SPECIFICATIONS MEET YOUR REQUIREMENTS.

Direct Operated Directional Control Valve - Series D4P / D9P / D11P - D4P001K2N

Name: Direct Operated Directional Control Valve - Series D4P / D9P / D11P - D4P001K2N
SKU: D4P001K2N
Availability: OutOfStock

The hydraulically operated directional control valves series D4P (NG16 / CETOP 07), D9P (NG25 / CETOP 08) and D11P (NG32 / CETOP 10) ensure safe shifting and provide a wide range of spool options.

Availability:

Backordered

SKU: D4P001K2N

Qty:

Products specifications

Attribute name	Attribute value
Minimum Operating Temperature	-25 °C	Operation Type	Direct
Function	n/a	Maximum Operating Pressure	350 bar
Maximum Flow Rate	300 L/min	Weight	9 kg
For Fluid Type	Hydraulic Oil According to DIN 51524	Seal Material	NBR
Maximum Operating Temperature	60 °C	Mounting Position	Unrestricted
Mounting Type	Subplate	Product Series	Directional Control Valve
Body Material	Cast Iron	Division	Industrial Systems Division Europe
Actuation Type	Hydraulic Pressure
Seal Material	NBR	Spool Code	001
Options	Standard without accessories	Spool Position	2 positions, spring offset in position 0, operated in position b
Marking	Standard	Port Connection	NG16 / CETOP 07
