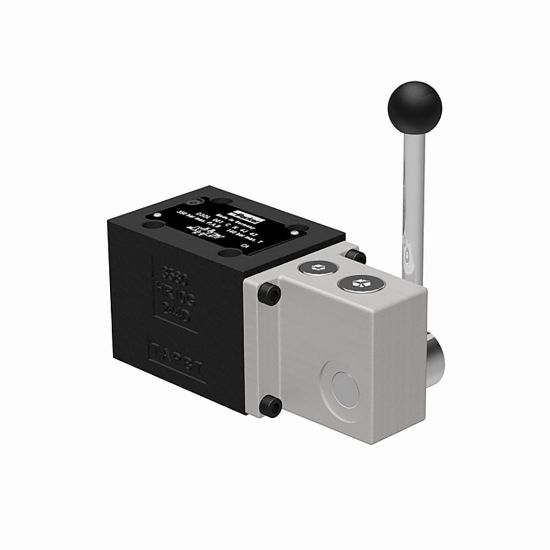

Direct Operated Directional Control Valve - Series D1VL / D3DL - D3DL001CN4K

Name: Direct Operated Directional Control Valve - Series D1VL / D3DL - D3DL001CN4K
SKU: D3DL001CN4K
Availability: OutOfStock

The direct operated directional control valves series D1VL (NG06 / CETOP 03 / NFPA D03) and D3DL (NG10 / CETOP 05 / NFPA D05) with hand lever provide high flow and feature a wide range of spool options.

Availability:

Backordered

SKU: D3DL001CN4K

Qty:

Products specifications

Attribute name	Attribute value
For Fluid Type	Hydraulic Oil According to DIN 51524	Seal Material	NBR
Maximum Operating Temperature	60 °C	Mounting Position	Unrestricted
Weight	3.7 kg	Maximum Flow Rate	130 L/min
Mounting Type	Subplate	Product Series	Directional Control Valve
Maximum Operating Pressure	350 bar	Function	3-Way
Minimum Operating Temperature	-25 °C	Division	Industrial Systems Division Europe
Operation Type	Direct	Body Material	Cast Iron
Actuation Type	Manual
Seal Material	NBR	Switching Option	Center of rotation above spool axis
Port Connection	NG10 / CETOP 05	Actuation	Hand lever side B
Spool Code	001	Spool Position	3 positions, spring offset in position 0, operated in position a or b
