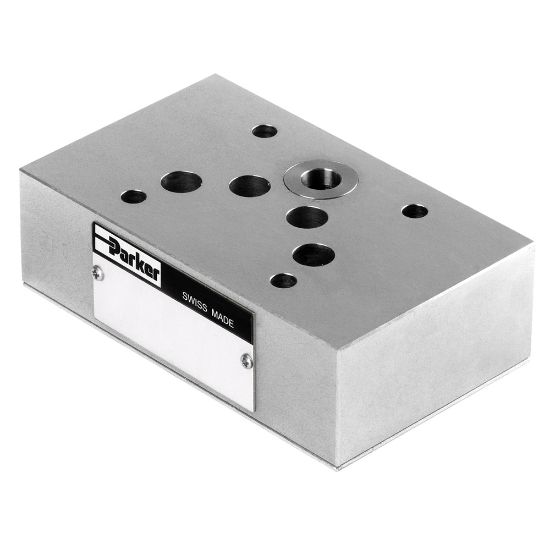

Direct Operated Check Valve - Series ZRV - 098-90025-0

Name: Direct Operated Check Valve - Series ZRV - 098-90025-0
SKU: 098-90025-0
Availability: OutOfStock

Parker's direct operated check valves series ZRV in size NG06 (CETOP 03) and NG10 (CETOP 05) are equipped with a cartridge type insert to ensure zero leakage and high lifetime.

Availability:

Backordered

SKU: 098-90025-0

Qty:

Products specifications

Attribute name	Attribute value
Weight	0.7 kg	Maximum Flow Rate	n/a
Configuration	Check Function in Port P	Product Series	Check Valve
Actuation Type	Mechanical	Flow Rate	40 L/min
Minimum Operating Temperature	-20 °C	Connection Type	n/a
Connection Size	n/a	Division	Industrial Systems Division Europe
Flow Direction	Free Flow in one direction blocked in opposite direction	Mounting Position	Unrestricted
Operation Type	Direct	Maximum Operating Pressure	350 bar
Seal Material	n/a	Mounting Type	Sandwich Plate
Cracking Pressure	0.5 bar	Body Material	Steel
Maximum Operating Temperature	60 °C
Function	Check function in P	Port Connection	NG06 / CETOP 03
