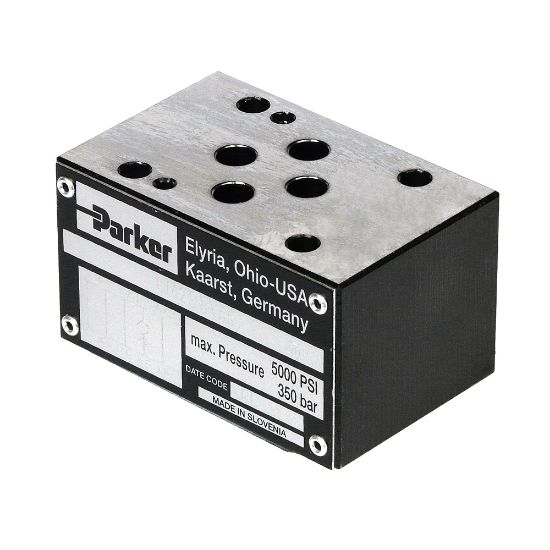

*PRODUCT IMAGE IS REPRESENTATIVE PROVIDED BY THE MANUFACTURER. DO NOT MAKE BUYING DECISIONS SOLEY BASED ON THE IMAGE. PLEASE VERIFY SPECIFICATIONS MEET YOUR REQUIREMENTS.

Direct Operated Check Sandwich Valve – CM Series(AP) - SCM2AAN

Name: Direct Operated Check Sandwich Valve – CM Series(AP) - SCM2AAN
SKU: SCM2AAN
Availability: OutOfStock

Parker direct operated check valves series CM in sandwich design are predestined for an easy configuration of stack systems. A large number of options offer a multitude of uses for hydraulic switching.

Availability:

Backordered

SKU: SCM2AAN

Qty:

Products specifications

Attribute name	Attribute value
Product Series	Check Valve	Interface Type	DIN 24340 A6,ISO 4401,NFPA D03
Actuation Type	Mechanical	Minimum Operating Temperature	-20 °C
Maximum Flow Rate	53 L/min	Weight	0.9 kg
Maximum Operating Pressure	350 bar	Cracking Pressure	0.3 bar
Body Material	Nodular cast iron	Seal Material	NBR
Maximum Operating Temperature	60 °C	Mounting Type	Sandwich Plate
Division	Control Division China
Seal Material	N - NBR	Nominal Size	2 - NG06
Function	AA - From directional valve to manifold, check valve in channel A
