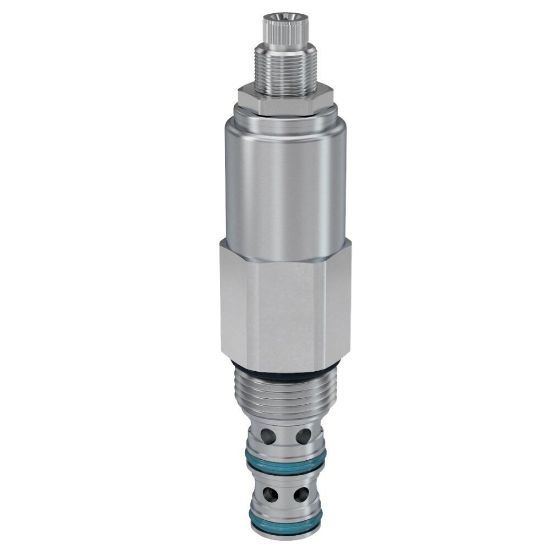

Direct Acting Sequence Valve - SV105T06

Name: Direct Acting Sequence Valve - SV105T06
SKU: SV105T06
Availability: OutOfStock

Parker’s direct acting sequence valves can be piloted and vented allowing multiple actuators to work in sequence based on pressure settings; working with flows up to 56 lpm (15 gpm) and pressures up to 420 bar (6000 psi).

Availability:

Backordered

SKU: SV105T06

Qty:

Products specifications

Attribute name	Attribute value
Maximum Operating Pressure	250 bar	Body Material	n/a
Minimum Operating Temperature	-37 °C	Maximum Kinematic Viscosity	45-2000 SSU (6 to 420 cSt)
Division	Hydraulic Systems Division	Pilot Location	External
Weight	0.45 kg	Maximum Operating Temperature	+200 °F
Flow Rate	38 L/min	Actuation Type	Pressure Sensing
Operation Type	Automatic	Adjustment Mechanism	Tamper Resistant
Seal Material	D-Ring (Standard)	Function	Direct Acting Sequence
Cavity Size	C10-3	Drain Option	Internal
Sealed Pilot Included	No	Maximum Flow Rate	38 L/min
For Fluid Type	Mineral-based or synthetic hydraulic fluids	Configuration	Normally Closed
Valve Material	All parts steel. All operating parts hardened steel	Filter Efficiency Rating	ISO 4406 18/16/13, SAE Class 4
Mounting Type	Screw in cartridge valve	Operating Temperature	-35 to +200 °F
Maximum Inlet Pressure Rating	250 bar	Installation Torque	50-56 Nm
Leak Rate	82 @ 3000 PSI (210 BAR) cm3/min	Maximum Tank Pressure	250 bar
Pressure Control Range	6.9-42 bar	Maximum Pressure Setting	600 psi
Standard Setting Pressure	21 bar	Pressure Control Sensitivity	95 per turn psi
Adjustment Mechanism	Tamper Resistant	Seal Material	D-Ring (Standard)
Sealed Pilot Included	No	Flow Rate	10 GAL/MIN, 38 L/MIN
Maximum Inlet Pressure Rating	3600 PSI, 250 BAR	Pressure Control Range	100-600 PSI, 6.9-42 BAR
