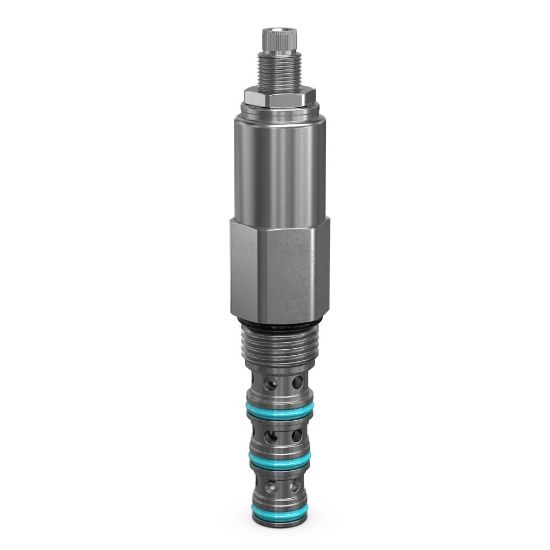

*PRODUCT IMAGE IS REPRESENTATIVE PROVIDED BY THE MANUFACTURER. DO NOT MAKE BUYING DECISIONS SOLEY BASED ON THE IMAGE. PLEASE VERIFY SPECIFICATIONS MEET YOUR REQUIREMENTS.

Direct Acting Sequence Valve - SV104S12V

Name: Direct Acting Sequence Valve - SV104S12V
SKU: SV104S12V
Availability: OutOfStock

Parker’s direct acting sequence valves can be piloted and vented allowing multiple actuators to work in sequence based on pressure settings; working with flows up to 56 lpm (15 gpm) and pressures up to 420 bar (6000 psi).

Availability:

Backordered

SKU: SV104S12V

Qty:

Products specifications

Attribute name	Attribute value
Maximum Operating Pressure	250 bar	Seal Material	Fluorocarbon
Body Material	n/a	Minimum Operating Temperature	-15 °F
Maximum Kinematic Viscosity	45-2000 SSU (6 to 420 cSt)	Division	Hydraulic Systems Division
Pilot Location	External	Weight	0.45 kg
Maximum Flow Rate	8 Gal/min	Actuation Type	Pressure Sensing
Flow Rate	8 Gal/min	Operation Type	Automatic
Adjustment Mechanism	Screw	Function	Direct Acting Sequence
Drain Option	External	Sealed Pilot Included	No
Cavity Size	C10-4	For Fluid Type	Mineral-based or synthetic hydraulic fluids
Maximum Operating Temperature	+400 °F	Configuration	Normally Open
Valve Material	All parts steel. All operating parts hardened steel	Operating Temperature	-15 to +400 °F
Filter Efficiency Rating	ISO 4406 18/16/13, SAE Class 4	Mounting Type	Screw in cartridge valve
Maximum Inlet Pressure Rating	250 bar	Installation Torque	50-56 Nm
Maximum Pressure Setting	1200 psi	Pressure Control Sensitivity	11.4 per turn bar
Leak Rate	82 @ 3000 PSI (210 BAR) cm3/min	Maximum Tank Pressure	250 bar
Pressure Control Range	14-83 bar	Standard Setting Pressure	42 bar
Seal Material	Fluorocarbon	Flow Rate	8 GAL/MIN, 30 L/MIN
Adjustment Mechanism	Screw	Sealed Pilot Included	No
Maximum Inlet Pressure Rating	3600 PSI, 250 BAR	Pressure Control Range	200-1200 PSI, 14-83 BAR
