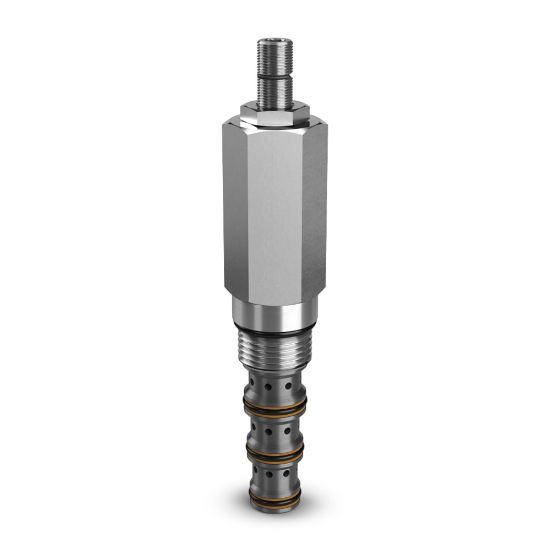

*PRODUCT IMAGE IS REPRESENTATIVE PROVIDED BY THE MANUFACTURER. DO NOT MAKE BUYING DECISIONS SOLEY BASED ON THE IMAGE. PLEASE VERIFY SPECIFICATIONS MEET YOUR REQUIREMENTS.

Direct Acting Sequence Valve - B04K4GZNS

Name: Direct Acting Sequence Valve - B04K4GZNS
SKU: B04K4GZNS
Availability: OutOfStock

Parker’s direct acting sequence valves can be piloted and vented allowing multiple actuators to work in sequence based on pressure settings; working with flows up to 56 lpm (15 gpm) and pressures up to 420 bar (6000 psi).

Availability:

Backordered

SKU: B04K4GZNS

Qty:

Products specifications

Attribute name	Attribute value
Seal Material	Nitrile	Maximum Operating Pressure	6000 psi
Body Material	n/a	Maximum Kinematic Viscosity	45-2000 SSU (6 to 420 cSt)
For Fluid Type	Mineral-based Hydraulic Fluids	Pilot Location	External
Filter Efficiency Rating	SAE Class 4	Maximum Operating Temperature	121 °C
Minimum Operating Temperature	-34 °C	Mounting Type	Screw-in Cartridge
Actuation Type	Pressure Sensing	Division	Mobile Hydraulic Systems Division Europe
Operation Type	Automatic	Valve Material	Hardened Steel (all operating parts)
Installation Torque	50 Nm	Adjustment Mechanism	Screw
Maximum Tank Pressure	6000 psi	Operating Temperature	-30 to 250 °F
Maximum Inlet Pressure Rating	420 bar	Pressure Control Range	30 to 2400 psi
Function	Direct Acting Sequence	Drain Option	Internal
Configuration	Selector	Maximum Pressure Setting	166 bar
Standard Setting Pressure	1160 psi	Pressure Control Sensitivity	248 psi Per Turn
Weight	0.73 lb	Flow Rate	42 L/min
Leak Rate	40 cm3/min @ 1450 Psi (100 bar)	Cavity Size	C10-4
Maximum Flow Rate	42 L/min	Sealed Pilot Included	Yes
Seal Material	Nitrile	Adjustment Mechanism	Screw
Maximum Inlet Pressure Rating	6000 PSI, 420 BAR	Pressure Control Range	30-2400 PSI, 2-166 BAR
Flow Rate	11 GAL/MIN, 42 L/MIN	Sealed Pilot Included	Yes
