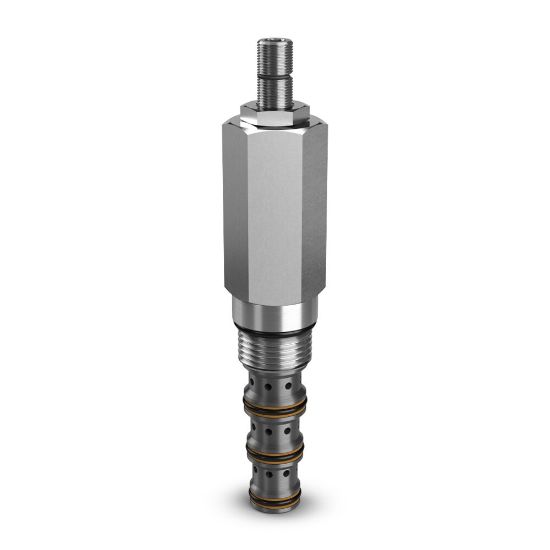

Direct Acting Sequence Valve - B04J4JZN

Name: Direct Acting Sequence Valve - B04J4JZN
SKU: B04J4JZN
Availability: OutOfStock

Parker’s direct acting sequence valves can be piloted and vented allowing multiple actuators to work in sequence based on pressure settings; working with flows up to 56 lpm (15 gpm) and pressures up to 420 bar (6000 psi).

Availability:

Backordered

SKU: B04J4JZN

Qty:

Products specifications

Attribute name	Attribute value
Weight	0.33 kg	Maximum Operating Pressure	420 bar
Seal Material	Nitrile	Maximum Operating Temperature	250 °F
Body Material	n/a	Configuration	Normally Closed (NC)
Maximum Kinematic Viscosity	45-2000 SSU (6 to 420 cSt)	For Fluid Type	Synthetic Hydraulic Fluids
Pilot Location	External	Filter Efficiency Rating	SAE Class 4
Minimum Operating Temperature	-30 °F	Flow Rate	12 Gal/min
Mounting Type	Screw-in Cartridge	Actuation Type	Pressure Sensing
Division	Mobile Hydraulic Systems Division Europe	Leak Rate	25 cm3/min @ 1450 Psi (100 bar)
Operation Type	Automatic	Valve Material	Steel (all parts)
Installation Torque	37 lb-ft	Adjustment Mechanism	Screw
Maximum Tank Pressure	420 bar	Operating Temperature	-30 to 250 °F
Maximum Inlet Pressure Rating	420 bar	Function	Direct Acting Sequence
Drain Option	External	Sealed Pilot Included	No
Maximum Pressure Setting	3500 psi	Standard Setting Pressure	120 bar
Cavity Size	C10-4	Maximum Flow Rate	12 Gal/min
Pressure Control Range	40-240 bar	Pressure Control Sensitivity	28 bar Per Turn
Seal Material	Nitrile	Adjustment Mechanism	Screw
Maximum Inlet Pressure Rating	6000 PSI, 420 BAR	Sealed Pilot Included	No
Pressure Control Range	580-3500 PSI, 40-240 BAR	Flow Rate	12 GAL/MIN, 47 L/MIN
