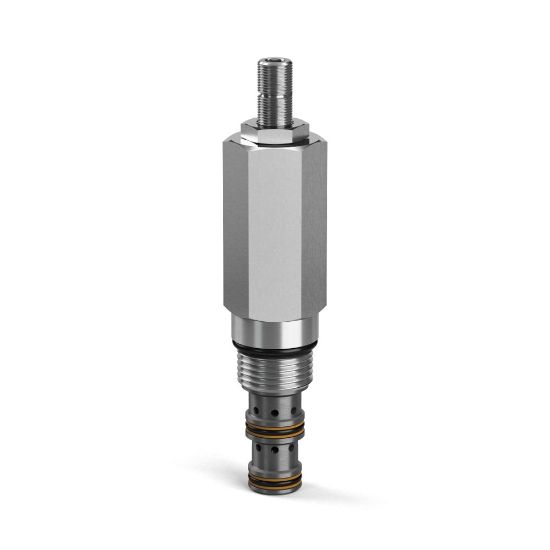

Direct Acting Sequence Valve - B04F3EZN

Name: Direct Acting Sequence Valve - B04F3EZN
SKU: B04F3EZN
Availability: OutOfStock

Parker’s direct acting sequence valves can be piloted and vented allowing multiple actuators to work in sequence based on pressure settings; working with flows up to 56 lpm (15 gpm) and pressures up to 420 bar (6000 psi).

Availability:

Backordered

SKU: B04F3EZN

Qty:

Products specifications

Attribute name	Attribute value
Weight	0.3 kg	Seal Material	Nitrile
Maximum Operating Pressure	6000 psi	Body Material	n/a
Configuration	Normally Closed (NC)	Maximum Kinematic Viscosity	45-2000 SSU (6 to 420 cSt)
For Fluid Type	Mineral-based Hydraulic Fluids	Pilot Location	External
Filter Efficiency Rating	SAE Class 4	Minimum Operating Temperature	-30 °F
Maximum Operating Temperature	121 °C	Mounting Type	Screw-in Cartridge
Actuation Type	Pressure Sensing	Division	Mobile Hydraulic Systems Division Europe
Leak Rate	25 cm3/min @ 1450 Psi (100 bar)	Operation Type	Automatic
Valve Material	Steel (all parts)	Installation Torque	37 lb-ft
Adjustment Mechanism	Screw	Maximum Tank Pressure	6000 psi
Operating Temperature	-30 to 250 °F	Maximum Inlet Pressure Rating	6000 psi
Pressure Control Range	30 to 1160 psi	Function	Direct Acting Sequence
Cavity Size	C10-3	Drain Option	Internal
Sealed Pilot Included	No	Maximum Pressure Setting	80 bar
Standard Setting Pressure	580 psi	Flow Rate	34 L/min
Maximum Flow Rate	9 Gal/min	Pressure Control Sensitivity	125 psi Per Turn
Seal Material	Nitrile	Adjustment Mechanism	Screw
Maximum Inlet Pressure Rating	6000 PSI, 420 BAR	Sealed Pilot Included	No
Pressure Control Range	30-1160 PSI, 2-80 BAR	Flow Rate	9 GAL/MIN, 34 L/MIN
