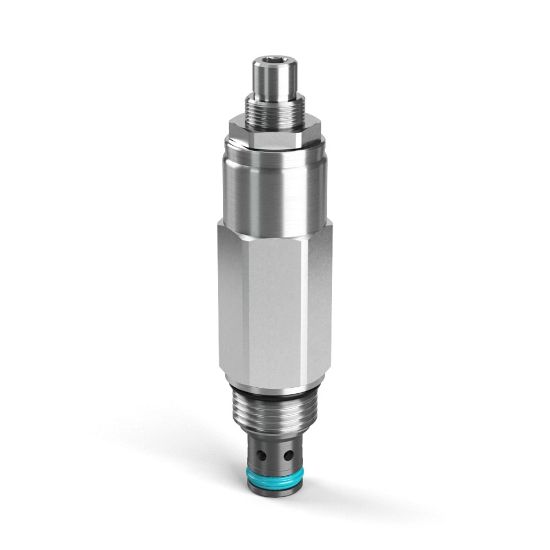

Direct Acting Relief Valves - RDH082T15N

Name: Direct Acting Relief Valves - RDH082T15N
SKU: RDH082T15N
Availability: OutOfStock

Parker’s direct acting relief valves are available in several cavity sizes and are designed for continuous duty applications with pressures up to 420 bar (6000 psi) and flows up to 200 lpm (53 gpm).

Availability:

Backordered

SKU: RDH082T15N

Qty:

Products specifications

Attribute name	Attribute value
Weight	0.18 kg	Seal Material	Nitrile
Body Material	n/a	Maximum Operating Pressure	5500 psi
Maximum Kinematic Viscosity	45-2000 SSU (6 to 420 cSt)	Division	Hydraulic Systems Division
Minimum Operating Temperature	-34 °C	Maximum Flow Rate	30 L/min
Function	Direct Acting	Configuration	Pressure Relief
Actuation Type	Pressure Sensing	Flow Rate	8 Gal/min
Cavity Size	C08-2	Operation Type	Automatic
Adjustment Mechanism	Tamper Resistant	Maximum Tank Pressure	350 bar
Wire Mesh Screen Included	n/a	Maximum Inlet Pressure Rating	380 bar
For Fluid Type	Mineral-based or synthetic hydraulic fluids	Maximum Operating Temperature	+121 °C
Valve Material	All parts steel. All operating parts hardened steel	Operating Temperature	-34 to +121 °C
Filter Efficiency Rating	ISO 4406 18/16/13, SAE Class 4	Mounting Type	Screw in cartridge valve
Installation Torque	32-36 lb-ft	Leak Rate	5 @ 75% Crack Pressure drops/min
Reseat Pressure	85% of pressure setting	Pressure Control Range	6.9-103.4 bar
Maximum Pressure Setting	1500 psi	Standard Setting Pressure	750 psi
Pressure Control Sensitivity	280 per turn psi
Seal Material	Nitrile	Flow Rate	8 GAL/MIN, 30 L/MIN
Adjustment Mechanism	Tamper Resistant	Maximum Inlet Pressure Rating	5500 PSI, 380 BAR
Pressure Control Range	100-1500 PSI, 6.9-103 BAR
