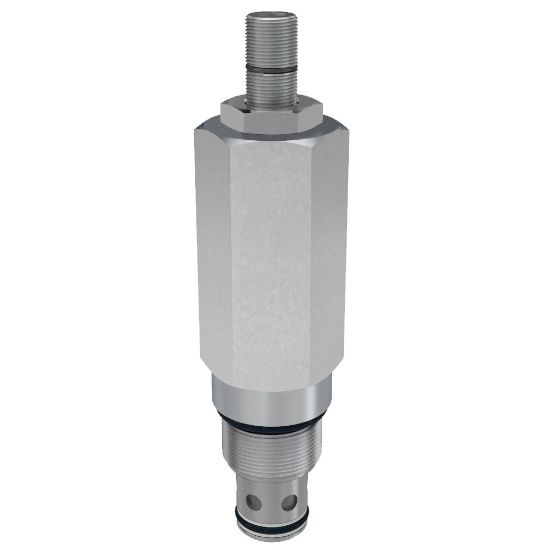

*PRODUCT IMAGE IS REPRESENTATIVE PROVIDED BY THE MANUFACTURER. DO NOT MAKE BUYING DECISIONS SOLEY BASED ON THE IMAGE. PLEASE VERIFY SPECIFICATIONS MEET YOUR REQUIREMENTS.

Direct Acting Relief Valves - A04C2DTN

Name: Direct Acting Relief Valves - A04C2DTN
SKU: A04C2DTN
Availability: OutOfStock

Parker’s direct acting relief valves are available in several cavity sizes and are designed for continuous duty applications with pressures up to 420 bar (6000 psi) and flows up to 200 lpm (53 gpm).

Availability:

Backordered

SKU: A04C2DTN

Qty:

Products specifications

Attribute name	Attribute value
Maximum Operating Pressure	420 bar	Maximum Flow Rate	200 L/min
Seal Material	Nitrile	Maximum Operating Temperature	250 °F
Body Material	n/a	Maximum Kinematic Viscosity	45-2000 SSU (6 to 420 cSt)
For Fluid Type	Mineral-based Hydraulic Fluids	Filter Efficiency Rating	SAE Class 4
Minimum Operating Temperature	-30 °F	Function	Direct Acting
Configuration	Pressure Relief	Mounting Type	Screw-in Cartridge
Actuation Type	Pressure Sensing	Maximum Pressure Setting	50 bar
Flow Rate	53 Gal/min	Weight	0.28 kg
Division	Mobile Hydraulic Systems Division Europe	Leak Rate	n/a
Cavity Size	C10-2	Operation Type	Automatic
Valve Material	Steel (all parts)	Reseat Pressure	n/a
Installation Torque	50 Nm	Adjustment Mechanism	Tamper Resistant
Maximum Tank Pressure	420 bar	Operating Temperature	-34 to 121 °C
Pressure Control Range	29 to 725 psi	Standard Setting Pressure	360 psi
Wire Mesh Screen Included	n/a	Pressure Control Sensitivity	76 psi Per Turn
Maximum Inlet Pressure Rating	420 bar
Seal Material	Nitrile	Flow Rate	53 GAL/MIN, 200 L/MIN
Adjustment Mechanism	Tamper Resistant	Pressure Control Range	29-725 PSI, 2-50 BAR
Maximum Inlet Pressure Rating	6000 PSI, 420 BAR
