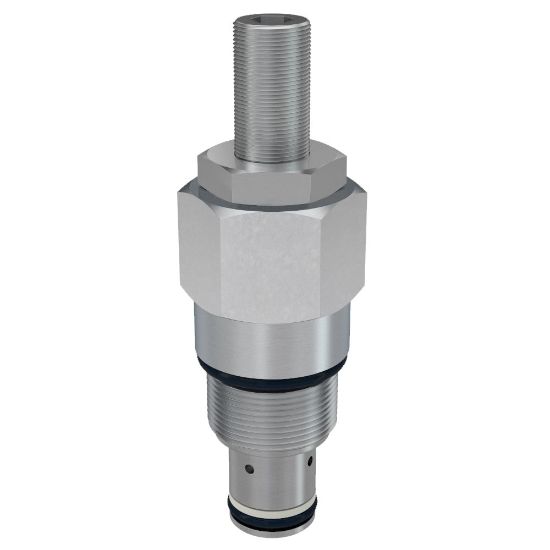

Direct Acting Relief Valves - A02A2HTN

Name: Direct Acting Relief Valves - A02A2HTN
SKU: A02A2HTN
Availability: OutOfStock

Parker’s direct acting relief valves are available in several cavity sizes and are designed for continuous duty applications with pressures up to 420 bar (6000 psi) and flows up to 200 lpm (53 gpm).

Availability:

Backordered

SKU: A02A2HTN

Qty:

Products specifications

Attribute name	Attribute value
Weight	0.11 kg	Maximum Pressure Setting	210 bar
Seal Material	Nitrile	Maximum Operating Pressure	6000 psi
Body Material	n/a	Maximum Kinematic Viscosity	45-2000 SSU (6 to 420 cSt)
For Fluid Type	Synthetic Hydraulic Fluids	Filter Efficiency Rating	SAE Class 4
Maximum Operating Temperature	121 °C	Minimum Operating Temperature	-34 °C
Function	Direct Acting	Configuration	Pressure Relief
Mounting Type	Screw-in Cartridge	Actuation Type	Pressure Sensing
Maximum Flow Rate	1.6 Gal/min	Flow Rate	6 L/min
Division	Mobile Hydraulic Systems Division Europe	Leak Rate	5 drops/min @ 1450 Psi (100 bar)
Cavity Size	C08-2	Operation Type	Automatic
Valve Material	Hardened Steel (all operating parts)	Reseat Pressure	n/a
Installation Torque	30 lb-ft	Adjustment Mechanism	Tamper Resistant
Maximum Tank Pressure	6000 psi	Operating Temperature	-34 to 121 °C
Pressure Control Range	10 to 210 bar	Standard Setting Pressure	100 bar
Wire Mesh Screen Included	n/a	Pressure Control Sensitivity	435 psi Per Turn
Maximum Inlet Pressure Rating	6000 psi
Seal Material	Nitrile	Flow Rate	1.6 GAL/MIN, 6 L/MIN
Adjustment Mechanism	Tamper Resistant	Pressure Control Range	145-3000 PSI, 10-210 BAR
Maximum Inlet Pressure Rating	6000 PSI, 420 BAR
