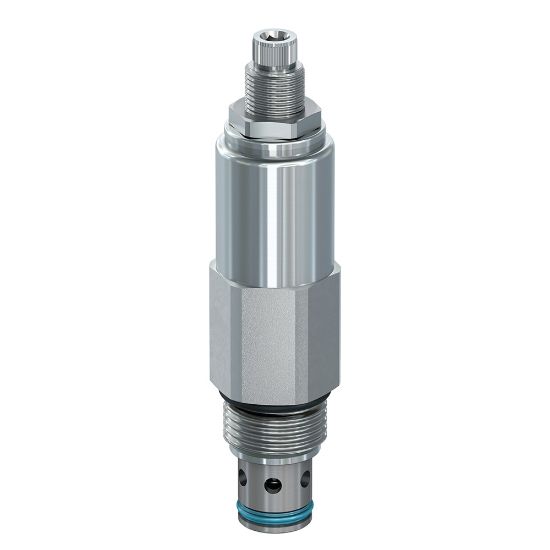

*PRODUCT IMAGE IS REPRESENTATIVE PROVIDED BY THE MANUFACTURER. DO NOT MAKE BUYING DECISIONS SOLEY BASED ON THE IMAGE. PLEASE VERIFY SPECIFICATIONS MEET YOUR REQUIREMENTS.

Direct Acting Differential Area Relief Valves - RDH103K10V

Parker’s direct acting differential area relief valves are for fast response intermittent applications and work up to 380 bar (5500 psi) and 151 lpm (40 gpm). These valves have lower leakage rates and pressure rise than standard direct acting reliefs.

Availability:	Backordered
Partner Available:	Backordered

SKU: RDH103K10V

$71.50

Products specifications

Attribute name	Attribute value
Weight	0.23 kg	Seal Material	Fluorocarbon
Body Material	n/a	Maximum Operating Pressure	5500 psi
Minimum Operating Temperature	-26 °C	Maximum Kinematic Viscosity	45-2000 SSU (6 to 420 cSt)
Division	Hydraulic Systems Division	Function	Direct Acting
Actuation Type	Pressure Sensing	Cavity Size	C10-2
Operation Type	Automatic	Adjustment Mechanism	Knob
Maximum Tank Pressure	5000 psi	Port Thread Size	n/a
Maximum Flow Rate	20 Gal/min	Maximum Inlet Pressure Rating	5500 psi
For Fluid Type	Mineral-based or synthetic hydraulic fluids	Maximum Operating Temperature	+400 °F
Valve Material	All parts steel. All operating parts hardened steel	Operating Temperature	-26 to +204 °C
Filter Efficiency Rating	ISO 4406 18/16/13, SAE Class 4	Mounting Type	Screw in cartridge valve
Flow Rate	75 L/min	Installation Torque	69-75 Nm
Maximum Pressure Setting	1000 psi	Standard Setting Pressure	500 psi
Cracking Pressure	N/A psi	Pressure Control Range	100-1000 psi
Leak Rate	5 @ 75% Crack Pressure drops/min	Configuration	Differential Area Relief, Differential Relief w/Reverse Flow Check
Reseat Pressure	85% of pressure setting	Pressure Control Sensitivity	9.8 per turn bar
Minimum Operating Pressure	380 bar
Seal Material	Fluorocarbon	Mounting Type	Screw in cartridge valve
Adjustment Mechanism	Knob	Cracking Pressure	N/A
Flow Rate	20 GAL/MIN, 75 L/MIN	Maximum Inlet Pressure Rating	5500 PSI, 380 BAR
Pressure Control Range	100-1000 PSI, 6.9-69 BAR	Standard Setting Pressure	500 PSI, 34.5 BAR
